Description

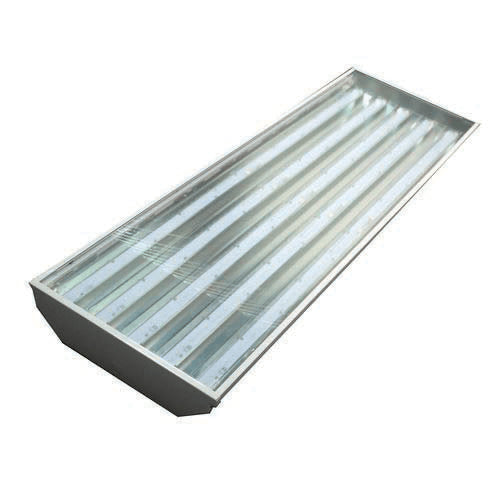

Advantage Environmental Lighting LFHB LED Full Body High Bay
The LFHB Series is an LED High Bay designed for standard suspended or surface mounted high bay applications. Multiple lensing options are available including diffusers and polycarbonate lenses.
APPLICATIONS
The LFHB Series of Full-Body High Bays were designed to be high quality, energy efficient fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast cover snaps into housing to cover driver and wires. White polyester polymer finish with a minimum 93% reflectivity.
OPTICAL SYSTEM
Various lensing options are available with addition of a doorframe. See doorframe ordering nomenclature.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 40°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 0-10 dimming standard.
MOUNTING
This fixture can be suspended or surface mounted.
LISTINGS
Damp location rated. Manufactured in the USA, BAA compliant.
WARRANTY
5-Year Limited Warranty.
| LFHB50SMDL12: 4' LED Full Body High Bay 91W 12000L 5000K | LFHB50SMDL14: 4' LED Full Body High Bay 107W 14000L 5000K | LFHB50SMDL18: 4' LED Full Body High Bay 137W 18000L 5000K | LFHB50HMDL24: 4' LED Full Body High Bay 183W 24000L 5000K | LFHB50HMDL30: 4' LED Full Body High Bay 220W 30000L 5000K | LFHB50HMDL36: 4' LED Full Body High Bay 273W 36000L 5000K |
