Description

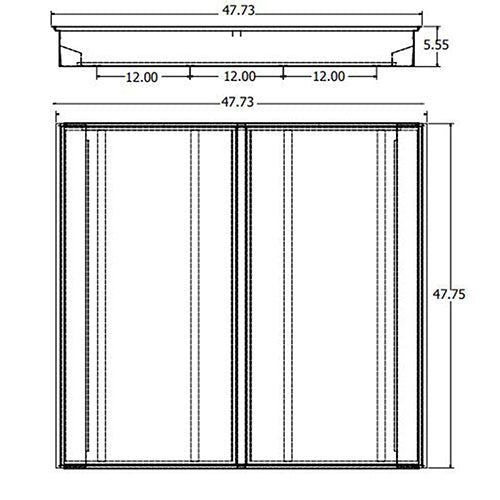

Advantage Environmental Lighting LLI 4 X 4 LED Lay-In Square Troffer
The LLI Series of Lay-In Luminaires were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy 20 guage steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Powder-coat white painted finish. Wiring access available on both top and sides of housing. Lift and shift lens is removable for room-side maintenance of lens, driver and LED boards.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Single piece extruded diffuse frosted glaze white satin acrylic lens creating a fully luminous aperture with high LED diffusion. Additional lens options are available, consult factory.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 90 CRI available - contact factory.
MOUNTING
This fixture can be recess-mounted in a acoustical and inaccessible ceilings.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Made in the USA.
WARRANTY
5-Year Limited Warranty. Completed warranty and terms located at: www.aelnow.com/warranty
| LLI40SLASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 33W 4650L 4000K | LLI40MLASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 57W 7974L 4000K | LLI40HLASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 80W 11150L 4000K | LLI40SMASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 86W 12040L 4000K | LLI40MMASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 93W 13016L 4000K | LLI40HMASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 112W 15728L 4000K |
| LLI40SHASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 118W 16500L 4000K | LLI40MHASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 143W 20000L 4000K | LLI40HHASDM: 4 x 4 LED Lay-in Flush Steel Door Frame .100 #12 Acrylic Lens Single Door 179W 25000L 4000K |
IES Files
Click for LLI-35-ML-S-SD-M.IES
