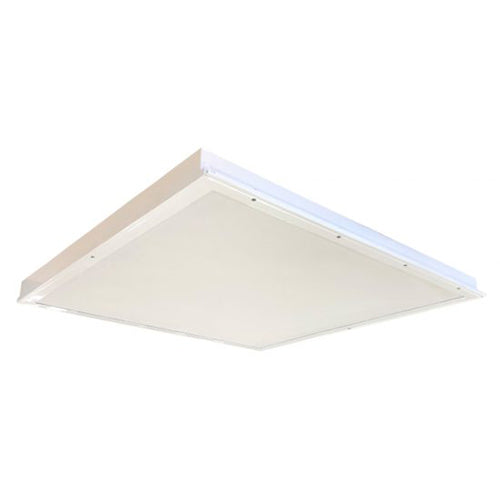

Advantage Environmental Lighting LLJ 3X3 LED Lay-In Luminaire
The LLJ Series of lay-In luminaires were designed to be high quality, energy efficient 3x3 recessed LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy 20 guage steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Powder-coat white painted finish. Wiring access available on both top and sides of housing. Lift and shift lens is removable for room-side maintenance of lens, driver and LED boards.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Single piece extruded diffuse acrylic lens creating a fully luminous aperture.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 90 CRI available - contact factory.
MOUNTING
This fixture can be recess-mounted in a acoustical and inaccessible ceilings.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Made in the USA.
WARRANTY
5-Year Limited Warranty.
