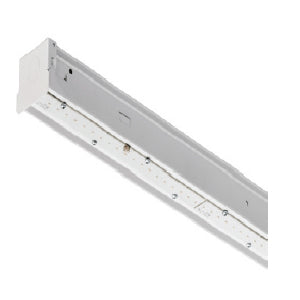

Advantage Environmental Lighting LLPS Low-Profile Narrow LED Strip
The LLPS Series is a Low-Profile LED Strip available in 2', 3', 4', & 8' body lengths. It was designed for surface or suspended mounting applications. The LLPS utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.
APPLICATIONS
The LLPS Series of Low-Profile LED Strips were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body.
OPTICAL SYSTEM
High output LED’s available in 3500K, 4000K, and 5000K. CRI >82. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10V dimming included standard. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. Lutron driver upgrades available by request.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated. Made in the USA.
WARRANTY
5-Year Limited Warranty.
| LLPS440SLM: 4' Narrow LED Strip 33W 4650L 4000K | LLPS440MLM: 4' Narrow LED Strip 57W 7974L 4000K | LLPS440HLM: 4' Narrow LED Strip 80W 11150L 4000K | LLPS440SMM: 4' Narrow LED Strip 86W 12040L 4000K |
