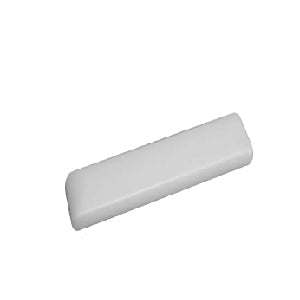

Advantage Environmental Lighting LPA 12" LED Puff Wrap
The LPA Series is a 12” LED Puff Wrap. It is a low-profile, narrow, and decorative wrap that is designed for surface mounting applications.
APPLICATIONS
The LPA Series of LED Puff Wraps are designed to be high quality, energy efficient LED fixtures for use in residential or commercial applications, kitchens, dens, living rooms, bathrooms, office, and recreation rooms
CONSTRUCTION
The fixture is constructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling. Housing accepts lift-and-shift lenses and frames, as well as frames that fit flush to the ceiling.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. Lift-andshift lens. The puff lens design provides excellent LED obscuration. Manufactured from high impact, durable DR/Acrylic White Polymer Blend.
ELECTRICAL SYSTEM
0-10V Dimming Driver included standard. 0-10V 10% dimming driver (no dim to off) standard with SL and ML outputs. 0-10V 1% dimming driver standard with HL-HH outputs. Long-life LED system rated for >100K life hours (L70 @ 25°C). Complies with federal energy efficiency standards.
MOUNTING
The LPA is designed for surface mounting.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
