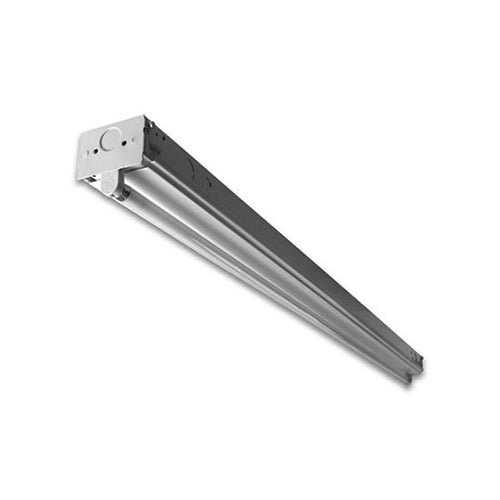

Advantage Environmental Lighting LPT8 Low Profile T8 Knockdown Strip Luminaire

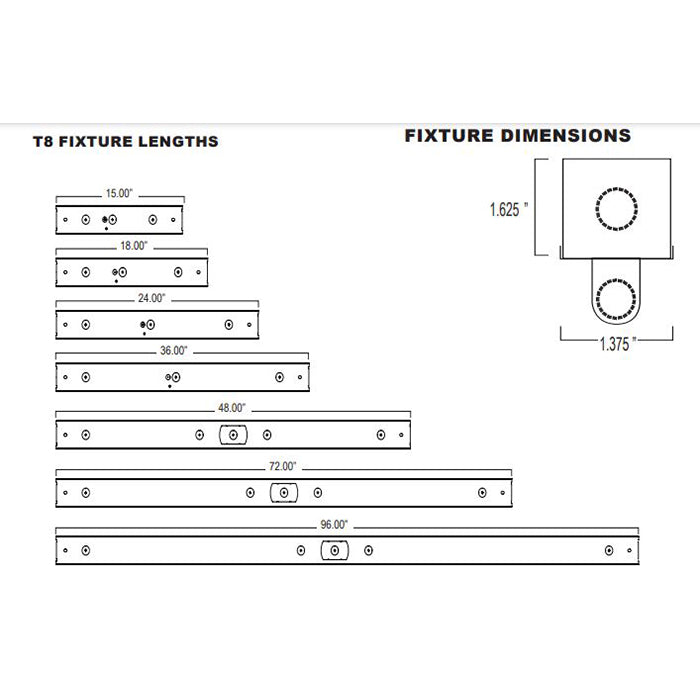

The LPT8 Series is a T8 Low-Profile Knockdown Fluorescent Strip available in 1' through 8' body lengths. It was designed for surface or suspended mounting applications.
APPLICATIONS
The LPT8 Luminaire is designed to be a high quality, energy efficient fixture for use in outdoor facilities, high rise garages, building exteriors, educational facilities, commercial applications, office buildings, government facilities, schools, recreational facilities, and other intensive use environments are the perfect types of environments for this Luminaire.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body.

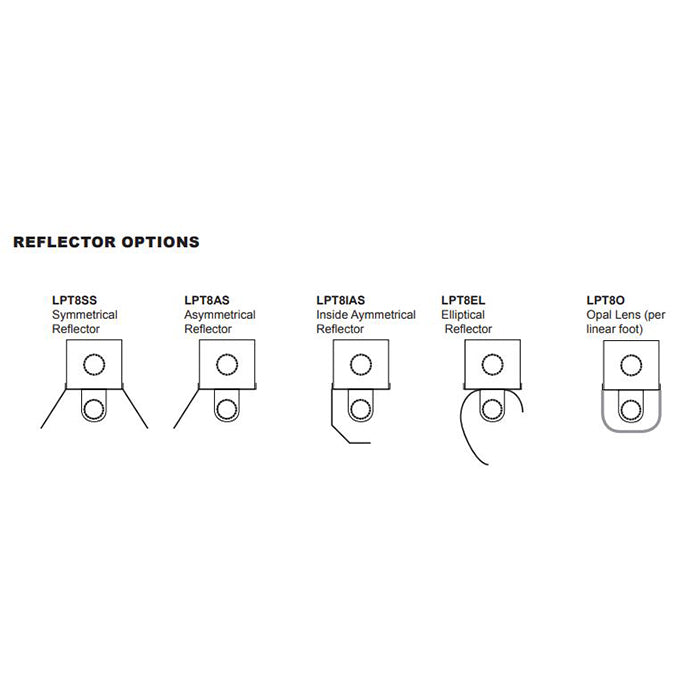

OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. Pre-painted 93% high reflective finish for maximum light output.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
| LPT8L117LED: 2' T8 - 1 lamp Low Profile Knockdown Strip Luminaire Wired for LED Tubes | LPT8L132LED: 4' T8 - 1 lamp Low Profile Knockdown Strip Luminaire Wired for LED Tubes |
