Description

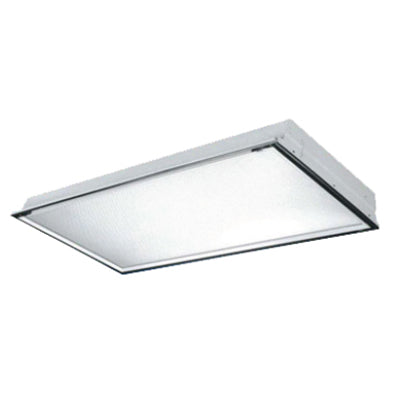

Advantage Environmental Lighting LRHB Recessed High Bay
The LRHB Series is a Recessed LED High Bay Fixture. The LRHB utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry. Multiple lensing options are available including diffusers and polycarbonate lenses.
APPLICATIONS
The LRHB Series of Recessed LED High Bays were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100,000 life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
LISTINGS
UL and cUL Listed. Damp location rated. Manufactured in the USA, BAA compliant.
WARRANTY
5-Year Limited Warranty..
| LRHB240SAM: 2X2 Recessed Troffer High Bay 60W 10000L 5000K | LRHB240MAM: 2X2 Recessed Troffer High Bay 118W 15500L 5000K | LRHB240HAM: 2X2 Recessed Troffer High Bay 153W 20000L 5000K | LRHB440SAM: 2X4 Recessed Troffer High Bay 60W 10000L 5000K | LRHB440MAM: 2X4 Recessed Troffer High Bay 118W 15500L 5000K | LRHB440HAM: 2X4 Recessed Troffer High Bay 153W 20000L 5000K |
