Description

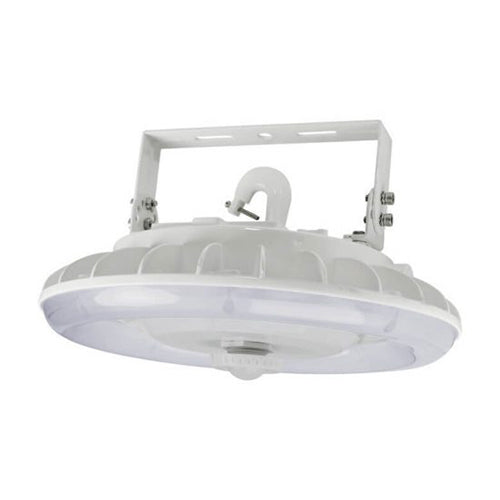

Advantage Environmental Lighting LRUFO LED UFO High Bay
The LRUFO is a UFO high bay suitable for indoor and outdoor use. High output and high efficacy LEDs make this high bay an economical choice for commercial, retail, and institutional applications.
APPLICATIONS
The LRUFO Series of LED UFO high bays were designed to be high quality, energy efficient LED fixtures for use in commercial, retail, and institutional applications including gymnasiums, factories, and warehouses.
CONSTRUCTION
Sealed die-cast aluminum housing designed to limited heat, and coated with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet location suitable. Bi-level motion sensor option available. Available in dark bronze, black, and white finishes.
OPTICAL SYSTEM
High transmission Anti-UV Frosted polycarbonate lens with high efficacy LEDs provides optimal high bay photometry.
ELECTRICAL SYSTEM
1-10v 10% dimming standard on all models. 67W and 97W models available in 120-277V, 140W and 180W models available in 120-277V and 347-480V. Operating temperature of -40°C to 55°C (-40°F to 131°F)
MOUNTING
Hook mount, pendant mount, and surface mount available.
LISTINGS
UL and cUL Listed. IP65 Wet Location rated for dust tight, water jets: IEC 60529.
WARRANTY
5-Year Limited Warranty..
| LRUFO4067WWM: LED UFO High Bay 67W 9,350 Lumens 4000K 120-277V | LRUFO5067WWM: LED UFO High Bay 67W 9,400 Lumens 5000K 120-277V | LRUFO4097WWM: LED UFO High Bay 97W 13,600 Lumens 4000K 120-277V | LRUFO5097WWM: LED UFO High Bay 97W 13,700 Lumens 5000K 120-277V | LRUFO40140WWM: LED UFO High Bay 140W 18,900 Lumens 4000K 120-277V | LRUFO50140WWM: LED UFO High Bay 140W 19,100 Lumens 5000K 120-277V |
| LRUFO40180WWM: LED UFO High Bay 180W 23,500 Lumens 4000K 120-277V | LRUFO50180WWM: LED UFO High Bay 180W 24,500 Lumens 5000K 120-277V | LRUFO40140WW480: LED UFO High Bay 140W 18,900 Lumens 4000K 347-480V | LRUFO50140WW480: LED UFO High Bay 140W 19,100 Lumens 5000K 347-480V | LRUFO40180WW480: LED UFO High Bay 180W 23,500 Lumens 4000K 347-480V | LRUFO50180WW480: LED UFO High Bay 180W 24,500 Lumens 5000K 347-480V |
| MS: Bi-Level Motion Sensor | EM: Emergency Battery Backup 16W/90 Min | UBM: U-Bracket Mount |
IES Files
Click for LRUFO-40-180W-X-M.IES
Product Files
