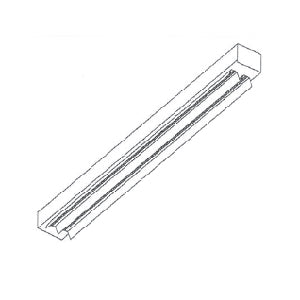

Advantage Environmental Lighting LSBNR LED Strip Narrow Reflector

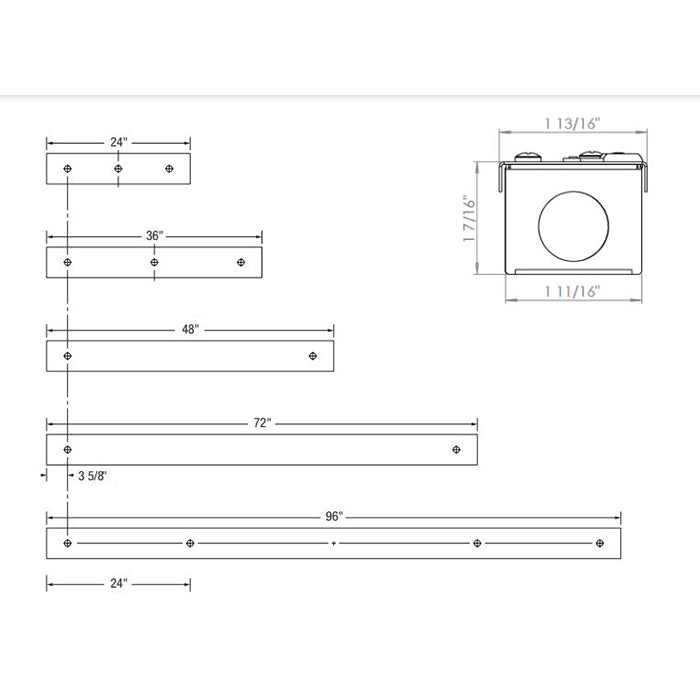

The LSBNR Series is an LED Strip available in 2’ through 8’ body lengths. It was designed for surface or suspended mounting applications. High efficacy LED system allows for economical energy and cost savings vs traditional strip luminaires.
APPLICATIONS:
The LSBNR Series of LED Strips were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION:
The fixture is constructed of a heavy gauge cold rolled steel body.
OPTICAL SYSTEM:
Narrow beam reflector directs LEDs in a narrow output. Available without reflector. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM:
120-277V applications. 50-60 Hz operation. 0-10V dimming standard. Long-life LED system rated for >100K life hours (L70@ 25°C). Complies with federal energy efficiency standards.
MOUNTING:
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer.
LISTINGS:
UL and cUL Listed. Indoor use only.
WARRANTY:
5-Year Limited Warranty.
