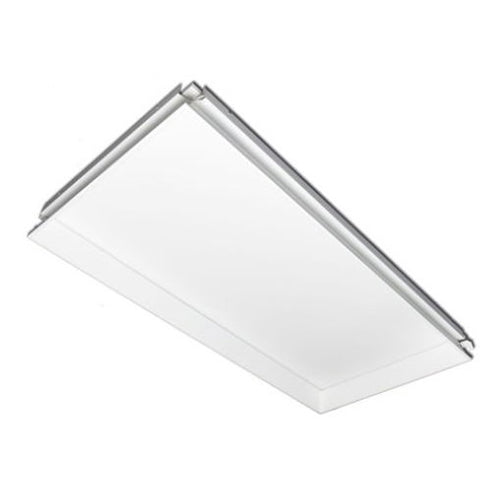

Advantage Environmental Lighting LSLR Recessed LED Sky Light

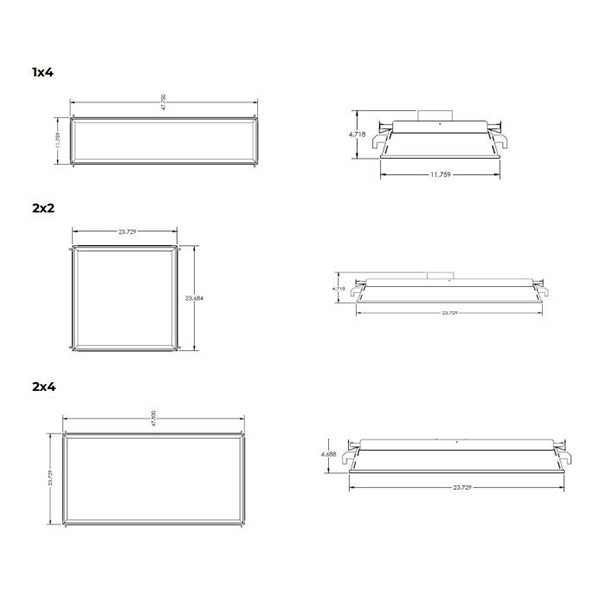

The LSLR is a recessed fixture with a unique regressed panel light that is made to resemble a sky light. Diffuser provides glare control and high levels of efficiency, while maintaining a natural sky light look and feel. Color temperature and wattage selectable and field adjustable. Available in 1x4, 2x2, and 2x4 fixture sizes.
APPLICATIONS
The LSRL Series of recessed sky light fixtures are designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and other public areas.
CONSTRUCTION
Housing is constructed of a white heavy gauge steel body.
OPTICAL SYSTEM
UV-stabilized PMMA optical lens that will not yellow over time. Backlit LEDs provide a soft and uniform light distribution with a 120° beam.
ELECTRICAL SYSTEM
0-10V dimming, 120-277VAC, 50/60Hz. Long-life LED system rated for >50K life hours (L70 @ 25°C). Color temperature selectable in 3500K, 4000K, and 5000K. 1x4 and 2x2 fixtures are available in 20W, 25W, and 30W selectable wattages. 2x4 fixtures are available in 30W, 40W, and 50W selectable wattages. Color temperature and wattage are field adjustable. Complies with federal energy efficiency standards.
MOUNTING
This fixture was designed for recessed mounting in a standard T-grid.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. BAA Compliant, Manufactured in Fort Worth, TX.
WARRANTY
5-Year Limited Warranty.
