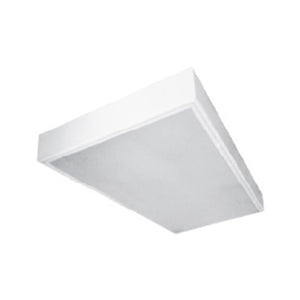

Advantage Environmental Lighting LSMF High Quality Surface Mount LED Luminaire

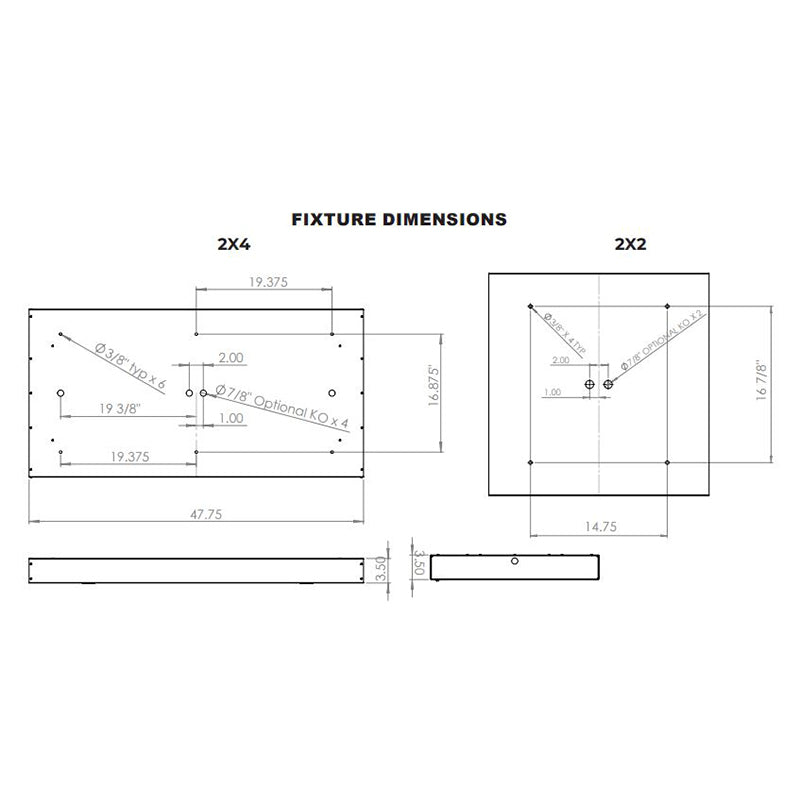

The LSMF Series is an architecturally designed surface mount LED luminaire. The LSMF Series is available in 1x4, 2x2, and 2x4 body sizes. It was designed for standard surface mounting applications. Multiple lensing options are available, including diffusers and parabolic cubes. Driven by performance and a clean aesthetic, the LSMF is constructed from premium materials with industry leading technology. This luminaire is designed to integrate seamlessly with today's modern building management systems.
APPLICATIONS
The LSMF Series are designed to be high quality, energy efficient LED fixtures for use in commercial spaces, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Whiter polyester powder-coat finish standard.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available for this luminaire.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10v dimming driver standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Complies with federal energy efficiency standards.
MOUNTING
This fixture is designed for surface mounting.
DOOR FRAME
Available with an optional Vandal Resistant Door Frame.
LISTINGS
UL and cUL Listed. Damp location rated. Manufactured in the USA, BAA compliant.
WARRANTY
5-Year Limited Warranty.
| LSMF140SLAM: 1 x 4 High Quality Surface Mount LED Luminaire 33W 4650L 4000K | LSMF140MLAM: 1 x 4 High Quality Surface Mount LED Luminaire 57W 7974L 4000K | LSMF140HLAM: 1 x 4 High Quality Surface Mount LED Luminaire 80W 11150L 4000K | LSMF240SLAM: 2 x 2 High Quality Surface Mount LED Luminaire 33W 4650L 4000K | LSMF240MLAM: 2 x 2 High Quality Surface Mount LED Luminaire 57W 7974L 4000K | LSMF240HLAM: 2 x 2 High Quality Surface Mount LED Luminaire 80W 11150L 4000K |
| LSMF440SLAM: 2 x 4 High Quality Surface Mount LED Luminaire 33W 4650L 4000K | LSMF440MLAM: 2 x 4 High Quality Surface Mount LED Luminaire 57W 7974L 4000K | LSMF440HLAM: 2 x 4 High Quality Surface Mount LED Luminaire 80W 11150L 4000K | LSMF440SMAM: 2 x 4 High Quality Surface Mount LED Luminaire 86W 12040L 4000K | LSMF440MMAM: 2 x 4 High Quality Surface Mount LED Luminaire 93W 13016L 4000K | LSMF440HMAM: 2 x 4 High Quality Surface Mount LED Luminaire 112W 15728L 4000K |
| LSMF440SHAM: 2 x 4 High Quality Surface Mount LED Luminaire 118W 16500L 4000K | LSMF440MHAM: 2 x 4 High Quality Surface Mount LED Luminaire 143W 20000L 4000K | LSMF440HHAM: 2 x 4 High Quality Surface Mount LED Luminaire 179W 25000L 4000K |
