Description

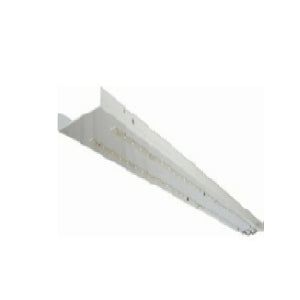

Advantage Environmental Lighting LSR LED Strip Retrofit Kit
The LSR Series is a plug and play LED strip retrofit kit that is designed to modify existing strips into high efficiency LED options. It is designed to save time and energy by upgrading fixtures, rather than replacing them.
APPLICATIONS
The LSR is perfect for converting existing fixtures for use in commercial applications, offices, government facilities, schools, an public areas.
CONSTRUCTION

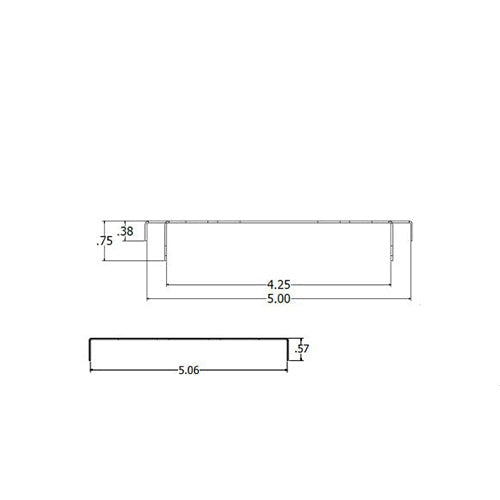

The fixture is constructed of heavy gauge steel, and designed to retrofit into any existing 4' or 8’ strip. Designed for a standard 4.25” wide strip, with a 5” wide strip option available (see options).
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity.
ELECTRICAL SYSTEM
Electronic driver 0-10V, 1% and 10% dimming standard. For outputs SL and ML, 0-10V 10% dimming driver (no dim to off) is standard. For outputs HL-HH, 0-10V 1% dim to off dimming driver standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.
MOUNTING
The fixture can be retrofit into a strip that is surface or suspension mounted.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty..
Specification
| Input Voltage | 120/277VAC |
| Input Power | 33 - 179 Watts |
| Input Frequency | 50/60 Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | 30° to 50° C |
| Lumen Output | 4650 - 25000 Lumens |
| Standard dimmimg control | 0-10V |
| CCT | (*Special order) |
| Life time rating | 100,000 hrs @ L70 |
| Power factor | >0.9 |
| LSR440SLM: 4.25" x 48" LED Strip Retrofit Kit 32W 3942L 4000K | LSR440MM: 4.25" x 48 LED Strip Retrofit Kit 40W 5300L 4000K | LSR440HM: 4.25" x 48 LED Strip Retrofit Kit 60W 7884L 4000K | LSR840MM: 4.25" x 96" LED Strip Retrofit Kit 40W 5300L 4000K | LSR840HM: 4.25" x 96" LED Strip Retrofit Kit 60W 7884L 4000K | LSR840HM12800: 4.25" x 96" LED Strip Retrofit Kit 114W 12800L 4000K |
| LSR440SMUNV: 48" LED Universal Strip Retrofit Kit 32W 3942L 4000K | LSR440MMUNV: 48" LED Universal Strip Retrofit Kit 40W 5300L 4000K | LSR440HMUNV: 48" LED Universal Strip Retrofit Kit 60W 7884L 4000K | LSR840MMUNV: 96" LED Universal Strip Retrofit Kit 40W 5300L 4000K | LSR840HMUNV V: 96" LED Universal Strip Retrofit Kit 60W 7884L 4000K | LSR840HMUNV12800: 96" LED Universal Strip Retrofit Kit 114W 12800L 4000K |
