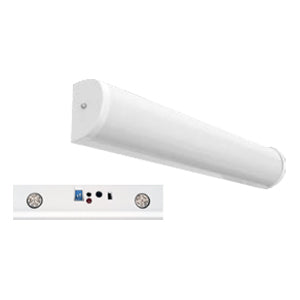

Advantage Environmental Lighting LSWV07 LED Stairwell Luminaire with Occupancy Sensor
The LSWV07 Series is a Stairwell LED Luminaire with an occupancy sensor and smooth white acrylic diffuser. The occupancy sensors switch lighting between on and off, or on and low level, based on occupancy.
APPLICATIONS
The LSWV07 Series of LED Stairwell fixtures are designed to be high quality, energy efficient LED fixtures for use in corridors, stairwells, etc. C
ONSTRUCTION
The fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. White finish with powder coated white ends.
OPTICAL SYSTEM
High output LED's available in 2700K, 3000K, 3500K, 4000K, and 5000K. Smooth-white diffuser cleanly distributes the light output.
ELECTRICAL SYSTEM
0-10V dimming driver standard for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Complies with federal energy efficiency standards.

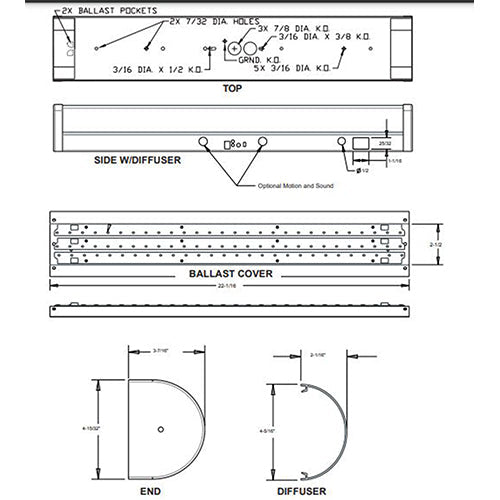

MOUNTING
The LSWV07 Series is designed for surface mounting on either a wall or ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty..
LSWV0740SLSWMW2: 2' LED Stairwell Fixture with Sensor 33W 4650L 3000K |
LSWV0740MLSWMW2: 2' LED Stairwell Fixture with Sensor 57W 7974L 3000K |
LSWV0740SLSWMW4: 4' LED Stairwell Fixture with Sensor 33W 4650L 3000K |
LSWV0740MLSWMW4: 4' LED Stairwell Fixture with Sensor 57W 7974L 3000K |
LSWV0740HLSWMW4: 4' LED Stairwell Fixture with Sensor 80W 11150L 3000K |
IES Files
Click for LSWV07-40-SL-SW-M-W-2.IES
