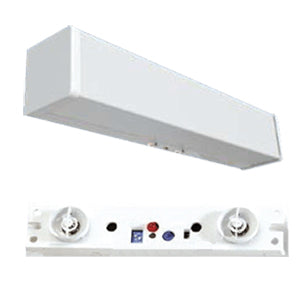

Advantage Environmental Lighting LSWV13 LED Stairwell Luminaire with Sensor
The LSWV13 Series is a LED Stairwell with Sensor fixture available in 2' and 4'. Utilizing the occupancy sensor to sense motion within a space. The occupancy sensors switch lighting between on and off, or on and low level, based on occupancy. After the area becomes unpopulated and the time delay has passed, the sensors automatically turn the lights off. Ultrasonic detection operates by transmitting sound waves throughout an area and measuring the speed at which they return. Movement increases the return frequency, which triggers occupancy.
APPLICATIONS
The LSWV13 Series of LED Stairwell with Sensor fixtures were designed to be high quality, energy efficient LED fixtures for use in hallways and corridors, stairwells, closets, and bathrooms.

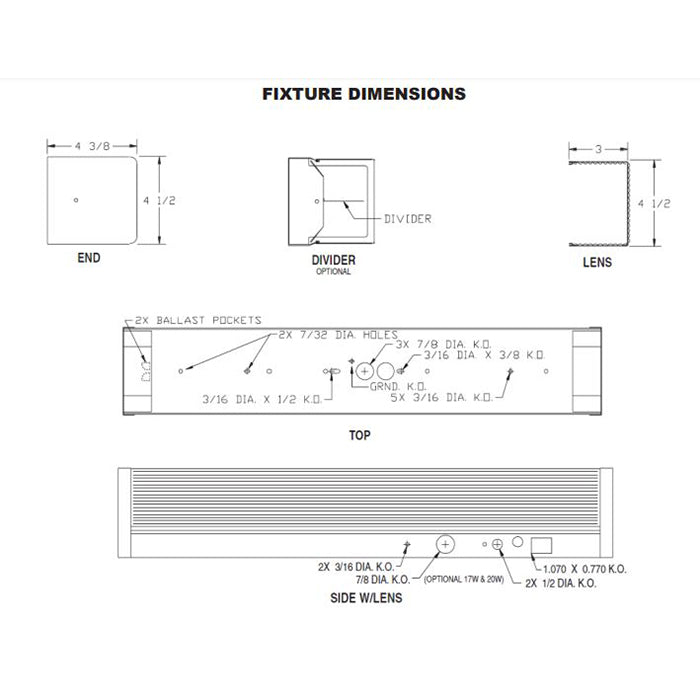

CONSTRUCTION
This fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. Optional 20 gauge body and one-piece end. Baffles and dividers are available for up, down, and/or front light. Ends with tapped holes to accommodate tamper-proof or regular screws. Wiring knockouts are provided on back of housing. End cap held in place with acorn nut.
OPTICAL SYSTEM
White pre-painted polyester polymer finish with a high reflectivity. The clear lens is fully captured by the end plate.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. The fixture is compatible with 0-10V dimming controls.
MOUNTING
Units are designed for surface mounting on either a wall or ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
SENSOR
Highly sensitive ultrasonic motion sensor detects motion outside direct line of sight Easy setup with 5 minute walk test mode. Adjustable sensitivity and time delay of 5, 10, 15 or 30 minutes.
WARRANTY
5-Year Limited Warranty.
| LSWV13240SLSWM: 4.3" x 24" Stairwell Fixture with Sensor 33W 4650L 4000K | LSWV13240MLSWM: 4.3" x 24" Stairwell Fixture with Sensor 57W 7974L 4000K | LSWV13440SLSWM: 4.3" x 48" Stairwell Fixture with Sensor 33W 4650L 4000K | LSWV13440MLSWM: 4.3" x 48" Stairwell Fixture with Sensor 57W 7974L 4000K | LSWV13440HLSWM: 4.3" x 48" Stairwell Fixture with Sensor 80W 11150L 4000K |
