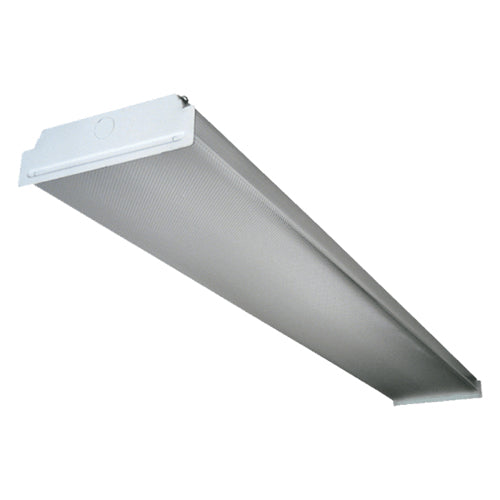

Advantage Environmental Lighting LWA High Quality 7" LED Wrap Luminaire
The LWA Series is a 7” LED Wrap available in 2' or 4' body lengths. It is a lowprofile, narrow wrap that is designed for surface mounting applications. The LWA utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.
APPLICATIONS
The LWA Series of LED Wraps are designed to be high quality, energy efficient LED fixtures for use in commercial and residential, great for multi family applications.
CONSTRUCTION
The fixture is constructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. White polyester polymer finish with a minimum 93% reflectivity. Lift-and-shift lens. Advanced microprism clear acrylic lens design provides excellent lamp obscuration. Linear sides provide excellent light distribution and put more light in task areas. Manufactured from durable DR/Acrylic polymer blend.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
Unit may be surface, stem or aircraft cable mounted individually or in continuous rows
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
Specification
| Input Voltage | 120/277VAC |
| Input Power | 33 - 179 Watts |
| Input Frequency | 50/60 Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | 30° to 50° C |
| Lumen Output | 4650 - 25000 Lumens |
| Standard dimmimg control | 0-10V |
| CCT | 3000, 3500, 4000, 5000 Kelvin |
| Life time rating | 100,000 hrs @ L70 |
| Power factor | >0.9 |
| LWA240SLM: 2' x 7" LED Wrap 24W 3100L 4000K | LWA440SLM: 4' x 7" LED Wrap 33W 4650L 4000K | LWA440MLM: 4' x 7" LED Wrap 57W 7974L 4000K | LWA440HLM: 4' x 7" LED Wrap 80W 11150L 4000K | LWA440SMM: 4' x 7" LED Wrap 86W 12040L 4000K | LWA440MMM: 4' x 7" LED Wrap 93W 13016L 4000K |
| LWA440HMM: 4' x 7" LED Wrap 112W 15728L 4000K | LWA440SHM: 4' x 7" LED Wrap 118W 16500L 4000K | LWA440MHM: 4' x 7" LED Wrap 143W 20000L 4000K | LWA440HHM: 4' x 7" LED Wrap 179W 25000L 4000K |
