Advantage Environmental Lighting LWV07 LED Wall/Vanity Luminaire


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Advantage Environmental Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

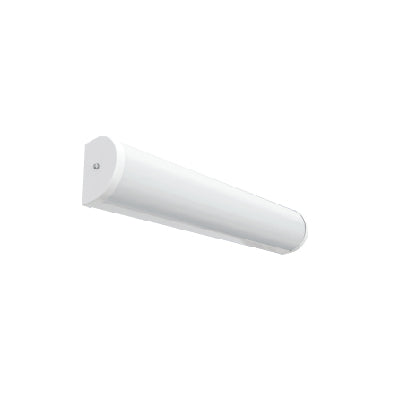

Advantage Environmental Lighting LWV07 LED Wall/Vanity Luminaire

The LWV07 Series is a Wall/Vanity LED Luminaire with a smooth white acrylic diffuser.

APPLICATIONS

The LWV07 Series of LED Wall/Vanity fixtures are designed to be high quality, energy efficient LED fixtures for use in corridors, stairwells, bathrooms, etc.

CONSTRUCTION

The fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. White finish with powder coated white ends.

OPTICAL SYSTEM

High output LED's available in 3000K, 3500K, 4000K, and 5000K. White pre-painted polyester polymer finish with a high reflectivity

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100,000 life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

MOUNTING

The LWV07 Series is designed for surface mounting on either a wall or ceiling.

LISTINGS

UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty.

Specification

Input Voltage 120/277VAC
Input Power 33 - 179 Watts*
Input Frequency 50/60 Hz
CRI 82 (minimum)
Operating Ambient Temperature Range (Ta) 30° to 50° C
Lumen Output 4650 - 25000 Lumens
Standard dimmimg control 0-10V
CCT 3000, 3500, 4000, 5000 Kelvin
Life time rating >100,000 hrs @ L70
Power factor >0.9
LWV0740SLSWMW2: 2' Wall Vanity 33W 4650L 4000K LWV0740MLSWMW2: 2' Wall Vanity 57W 7974L 4000K LWV0740SLSWMW4: 4' Wall Vanity 33W 4650L 4000K LWV0740MLSWMW4: 4' Wall Vanity 57W 7974L 4000K LWV0740HLSWMW4: 4' Wall Vanity 80W 11150L 4000K LWV0740SMSWMW4: 4' Wall Vanity 86W 12040L 4000K

IES Files

Click for LWV07-40-SL-SW-M-W-2.IES

Product Files

Click for Spec Sheet
