Advantage Environmental Lighting LWV16 Wall Vanity


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Advantage Environmental Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

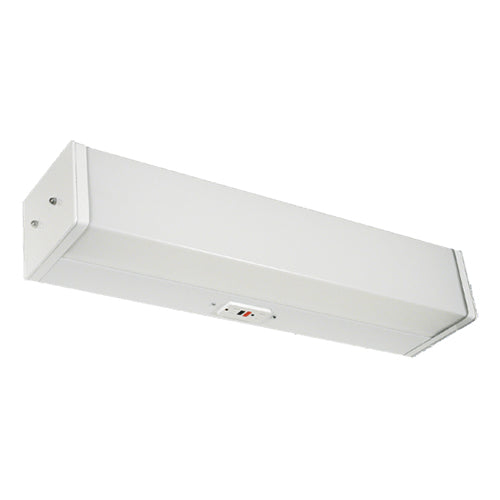

Advantage Environmental Lighting LWV16 Wall Vanity

The LWV16 Series is an LED Wall/Vanity fixture available with multiple lens and finish options.

APPLICATIONS

The LWV16 Series of LED Wall/Vanity fixtures were designed to be high quality, energy efficient LED fixtures for use in wall or ceiling corridors, stairwells and bathrooms.

CONSTRUCTION

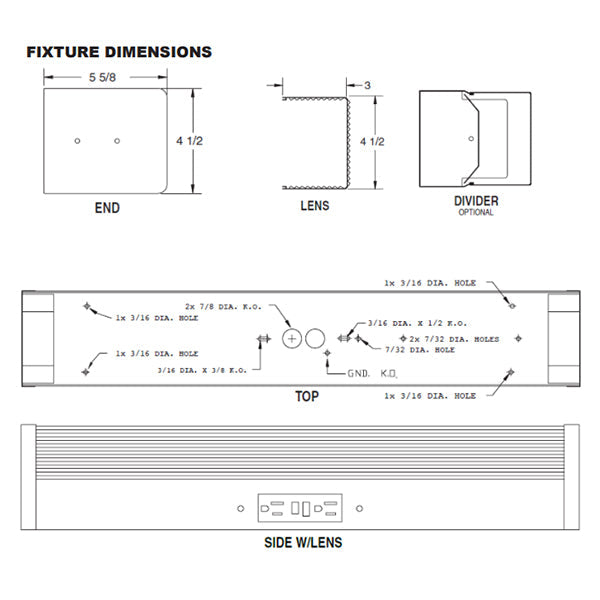

The fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. Optional 20 gauge body and one-piece end. Baffles and dividers are available for up, down, and/or front light. Ends with tapped holes to accommodate tamper-proof or regular screws.

OPTICAL SYSTEM

White pre-painted polyester polymer finish with a high reflectivity.

ELECTRICAL SYSTEM

Electronic driver 0-10V, 1% and 10% dimming standard. For outputs SL and ML, 0-10V 10% dimming driver (no dim to off) is standard. For outputs HL-HM, 0-10V 1% dim to off dimming driver standard. Long-life LED system rated for >130K hours (L70 @ 25°C). Complies with federal energy efficiency standards

MOUNTING

Units are designed for surface mounting on either a wall or ceiling.

LISTINGS

UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty.

Specification

Input Voltage 120/277VAC
Input Power 33 - 112 Watts*
Input Frequency 50/60 Hz
CRI 82 (minimum
Operating Ambient Temperature Range (Ta) 30° to 50° C
Lumen Output 4650 - 15728 Lumens
Standard dimmimg control 0-10V
CCT 3000, 3500, 4000, 5000 Kelvin
Life time rating >130,000 hrs @ L70
Power factor >0.9
Product Files

Click for Spec Sheet
