Description

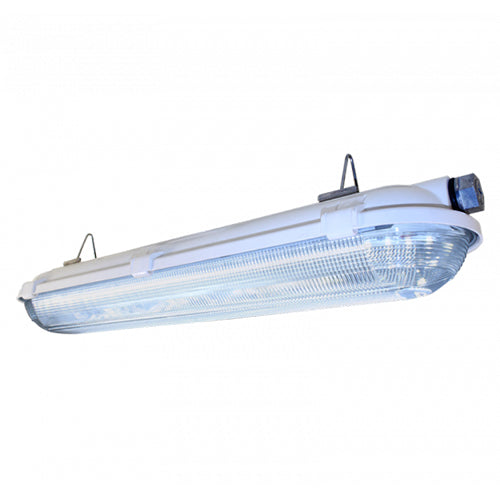

Advantage Environmental Lighting LXVT LED Vapor Tight
The LXVT series is an IP67/IP69K rated vapor tight, completely sealed against dust and moisture, for harsh environments. Available with a variety of lenses, latches, and wire entry configurations to meet the needs of various applications. The LXVT utilizes state-of-the-art LED technology to deliver the highest possible efficacy in the lighting industry.
APPLICATIONS
The LXVT series of vapor tights were designed for use in dusty, dirty, and wet environments including food processing facilities, cold storage, kitchens, parking garages, car washes, covered canopies, pedestrian tunnels, concourses, and industrial applications.
CONSTRUCTION
Constructed of a compression molded self-extinguishing fiberglass reinforced polyester compound with UL 5VA flame rating (ASTM D635-74). F1 weatherability rating. Continuous perimeter poured in place gasket assures a consistent lens seal to housing. Two 1/4-28 brass studs molded into back of housing for attachments of optional mounting brackets.
OPTICAL SYSTEM
Shallow low profile or ribbed deep lens options are available in a variety of finishes and materials. Lenses are designed for even illumination with no glare.
ELECTRICAL SYSTEM
120-277V applications, 0-10v dimming standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
Standard 316 stainless steel straps for surface mounting, or optional flush mounting bracket. Mounts to a snap-in-place mount or hook.
LISTINGS
UL and cUL Listed. Wet Location. NSF International Certified. IP65, IP66, IP67 rated. IP69K rated with lens options "RDRA" and "RCP".
WARRANTY
5-Year Limited Warranty.
