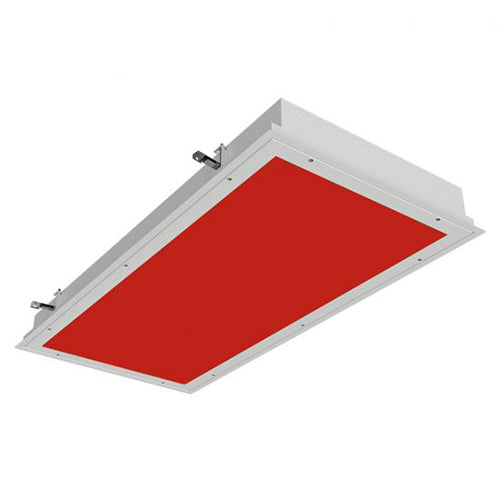

Advantage Environmental Lighting MEBFR Recessed/Recessed Flanged Surgical Suite 630nm Red and White LED

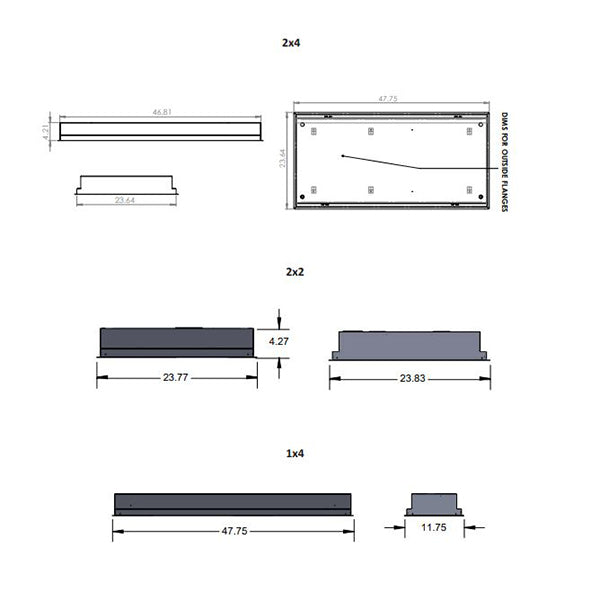

The MEBFR is a 630nm red and white LED operating room fixture. High transmission and diffusion lens with choice of symmetric, asymmetric/symmetric, and full asymmetric optics to accommodate the lighting needs of surgical suites. Available in 1x4, 2x2, and 2x4 sizes. Typically positioned around the perimeter of the operating room. Choice of housing and doorframe materials, antimicrobial paint, and a MIL STD 461G compliant option, the MEBFR is the perfect choice in the operating room surgical suite.
HOUSING
Choice of heavy gauge cold roll steel, stainless steel, or aluminum. Seam-welded construction. All doors attached to the housing with two stainless steel aircraft cables. Stainless steel Philips head screws secure door frame to housing. White TGIC polyester powder coat with a 5-stage pre-treatment. Salt spray test >1,000 hours. Reflectance of 92%. Antimicrobial finish optional.
DOORFRAME
Choice of heavy gauge cold roll steel, stainless steel, or aluminum. White TGIC polyester powder coat with a 5-stage pre-treatment. Salt spray test >1,000 hours. Reflectance of 92%. Doorframe secured to housing with stainless steel aircraft cables and captive flush mounted Phillips head stainless steel fasteners. Antimicrobial finish optional.
ELECTRICAL SYSTEM
Electronic driver 0-10V 1% dimming standard. Long-life LED system, white LEDs rated for >100K hours, 630nm red LEDs rated for >50K hours. Complies with federal energy efficiency standards.
OPTICAL SYSTEM
High transmission diffused high impact acrylic lens. IInternal reflector optics with choice of full symmetric, asymmetric/ symmetric, or full asymmetric maintain a uniform appearance while being engineered specifically for surgical suite applications. RF grid lens included when MIL STD 461G Compliance option is ordered.
LISTINGS
UL Listed. NSF = NSF2 listed (Non-Food, Splash Zone). IP65 rated. MIL option complies with MIL-STD-461G conducted emissions regulation and includes a radio suppression grid lens. Suitable for FED-STD-209E/Class 1 (ISO 3) cleanrooms.
MOUNTING
Flange applications. Easy installation with adjustable 90° swing arm system standard. Universal mounting allows for both recessed flanged and recessed grid mounting.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 100,000 hours at 70% lumen maintenance for white LEDs, and 50,000 hours at 70% lumen maintenance for 630nm red LEDs. LM79, LM80 and TM21 compliant.
WARRANTY
5 - Year Limited Warranty.
DOORFRAME GASKET
One-piece closed cell silicone gasket seals doorframe to housing
