Advantage Environmental Lighting MEF4RS Recessed Steel LED Luminaire
The MEF4RS Series is an architecturally designed Recessed Steel LED Luminaire that isclassically styled and fit for any interior. It is available for continuous run mounting.
APPLICATIONS
The MEF4RS Series of Recessed Steel Luminaires are designed to be high quality,energy efficient LED fixtures for use in commercial applications, offices, hotellobbies, museums, government facilities, schools, and public areas.
CONSTRUCTION

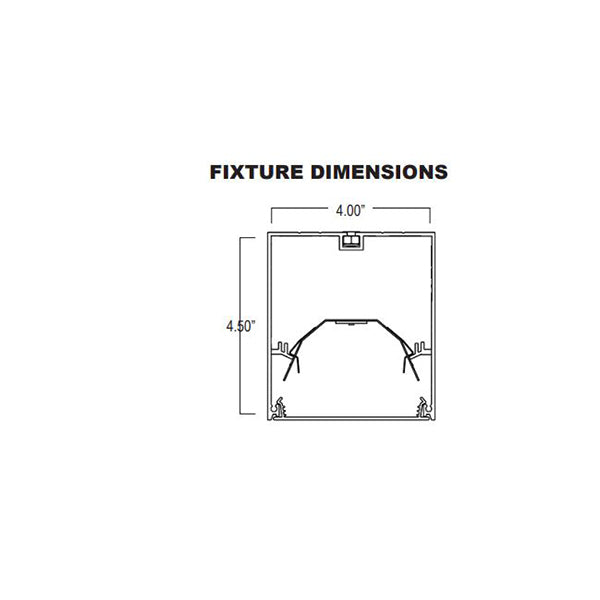

The fixture is constructed of a 4” wide heavy gauge steel body. The fixture is available inany run length within 1’ increments. Heavy duty housing crimped along sides for extrarigidity and straight alignment.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Linearribbed acrylic lens. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for>50K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies withf ederal energy efficiency standards.
MOUNTING

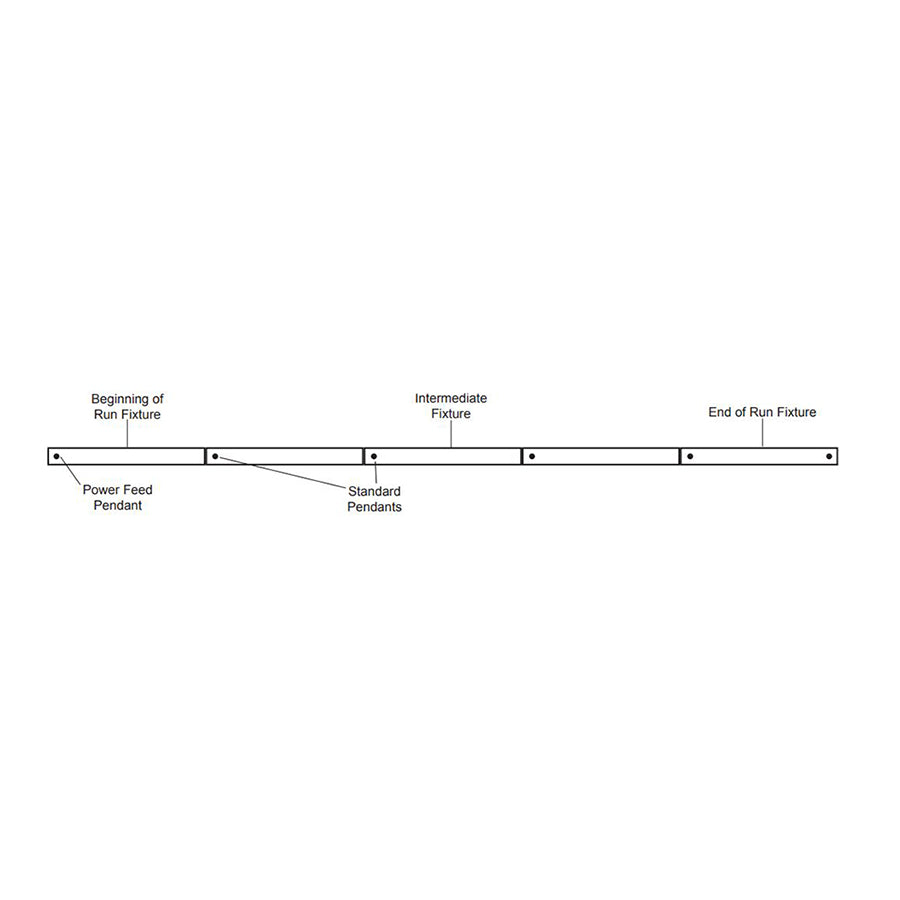

This fixture is designed to be recessed mounted. Continuous run available.
LISTING
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY
5-Year Limited Warranty.
Specification
| Input Voltage | 120/277 VAC |
| Input Frequency | 50/60Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | Low Ambient -20*C/ High Ambient 50*C |
| Standard dimmimg control | 0-10V |
| CCT | 3000, 3500, 4000, 5000 Kelvin |
| Life time rating | 100.000 hrs at L70 |
| Power factor | >0.9 |
