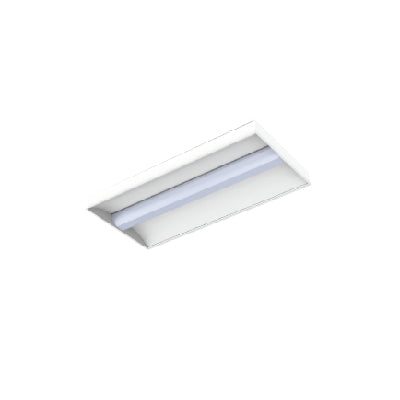

Advantage Environmental Lighting MEQ Recessed LED Operating Room

Advantage Environmental Lighting MEQ Recessed LED Operating Room

The MEQ provides a supplemental healthcare lighting solution. With an aesthetically pleasing design, combined with the latest in LED technology, the MEQ is the perfect luminaire for any healthcare application. The MEQ is available in 2x2, and 2x4 sizes.

ELECTRICAL SYSTEM

Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >50K hours (L90 @ 25°C), and >130K hours (L70 @ 25°C). Complies with federal energy efficiency standards.

OPTICAL SYSTEM

Various shielding and bottom lens options available.

LISTINGS

IP65 rated. NSF = NSF2 listed (Non-Food, Splash Zone). UL and cUL listed.

MOUNTING

Recessed Grid mounting. For custom mounting options, consult factory.

HOUSING

20 gauge formed cold rolled steel or aluminum option available. Seamwelded construction. For custom housing materials, consult factory.

DOORFRAME

20 gauge cold rolled steel or aluminum options available. For custom material options, consult factory.

LED

80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >130,000 hours at 70% lumen maintenance.

WARRANTY

5 - Year Limited Warranty.

IES Files

Click for MEQ24-40-ML-B20-RP-125P-B20-M.IES

Click for Spec Sheet
