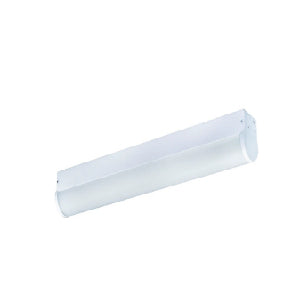

Advantage Environmental Lighting MSCDR LED Covered Strip Luminaire
The MSCDR LED Covered Strip Luminaire is designed to deliver general, ambient lighting in a variety of settings. The MSCDR has a high-efficacy, which provides long life and uniform illumination. The versatility of our MSCDR ensures it is the perfect choice for both new construction and retrofit applications.
APPLICATIONS
The MSCDR Covered Strip Luminaires are designed to be high quality, energy efficient LED fixtures for use in schools, office spaces, hospitals, commercial and retail spaces.
CONSTRUCTION
The fixture is constructed of a heavy steel housing. Available in 2',3',4', and 8' lengths.
OPTICAL SYSTEM
Uniform illumination with no visible LED pixelation.
ELECTRICAL SYSTEM
120-277V electronic program start ballasts. 50-60 Hz operation. Standard 0-10vdc dimming capability.
MOUNTING
Multiple mounting options available. Please contact factory.
LISTINGS
ETL approved for damp locations and to relevant UL standards (-30 degrees Celsius to 50 degrees Celsius / -22 degrees Fahrenheit to 122 degrees Fahrenheit). DLC approved. Complies with FCC Part 15, Class A. Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV). Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
WARRANTY
5-Year Limited Warranty on electronics and housing.
Specification
| Input Voltage | 120/277VAC |
| Input Power | 19, 25, 30, and 65 Watts |
| Input Frequency | 50/60 Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | -30° to 50° C |
| Lumen Output | 2,432 - 8,645 Lumens |
| Standard dimmimg control | 0-10V |
| CCT | 4000 or 5000 Kelvin |
| Life time rating | 100,000 hrs @ L70 |
| Power factor | >0.90 |
