Advantage Environmental Lighting MSQLD LED Pendant Mount Linear

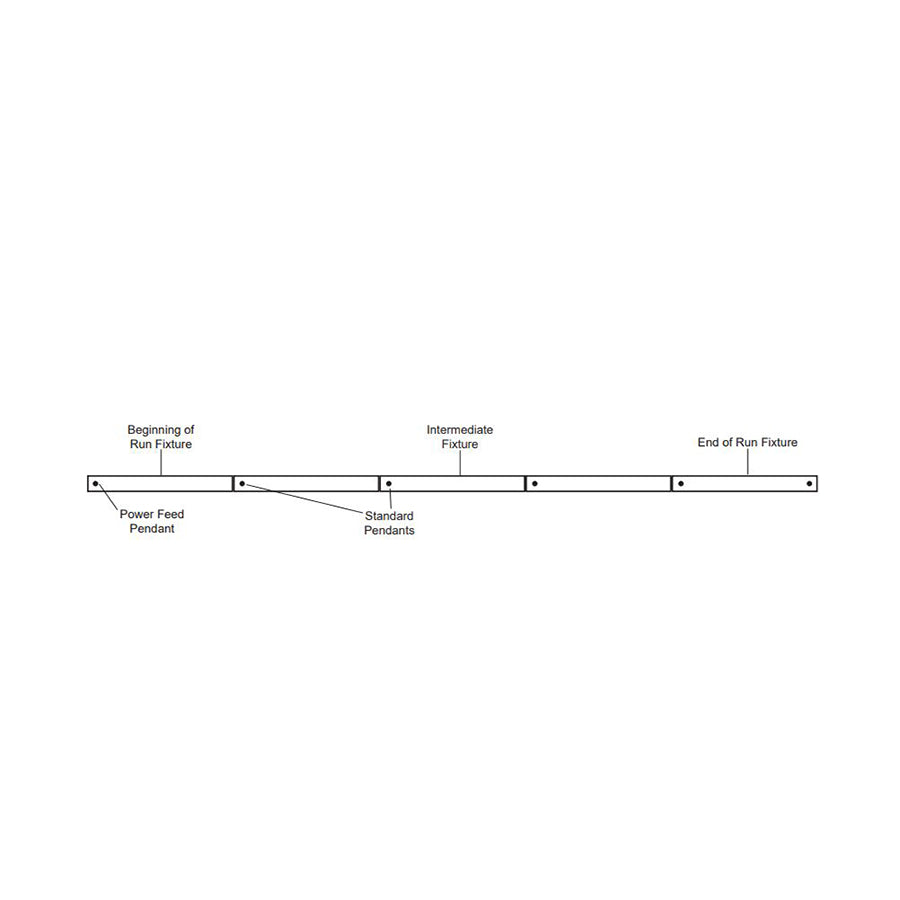

The MSQLD Series is an LED Pendant Mount Linear fixture available available for stand-alone or continuous run applications.
APPLICATIONS
The MSQLD Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
Our MSQLD is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. A computer designed optical system that maximizes the output of the lamps producing very wide distribution for even ceiling brightness with mounting from 12 to 18 inches from the ceiling.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with Federal energy efficiency standards. 0-10 Dimming Standard.
MOUNTING

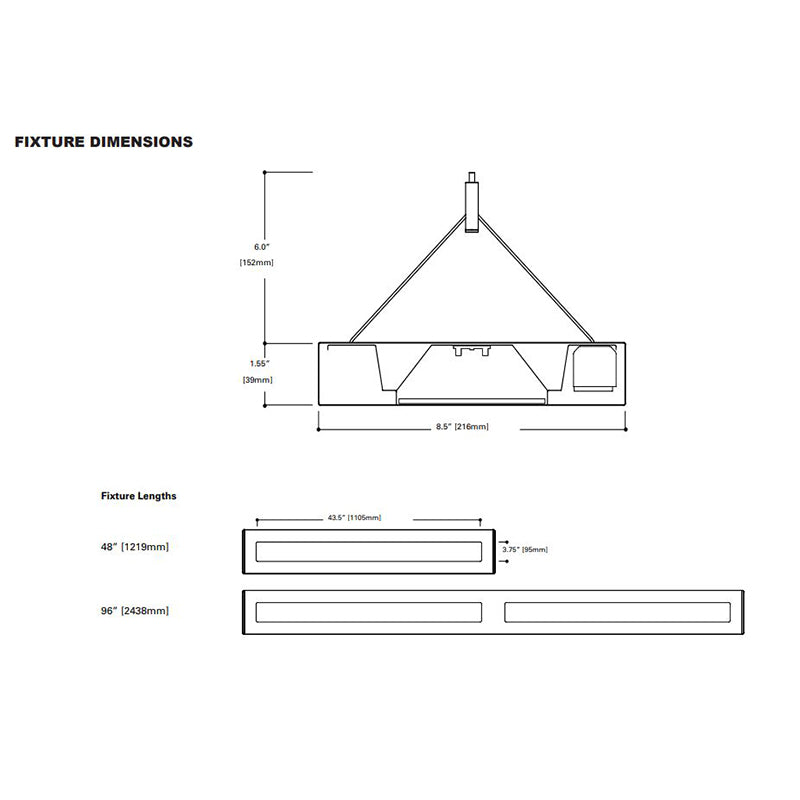

Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.resources
Specification
| Input Voltage | 120/277 VAC |
| Input Frequency | 50/60Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | Low Ambient -20*C/ High Ambient 50*C |
| Standard dimmimg control | 0-10V |
| CCT | 3000, 3500, 4000, 5000 Kelvin |
| Life time rating | 100.000 hrs at L70 |
| Power factor | >0.9 |
