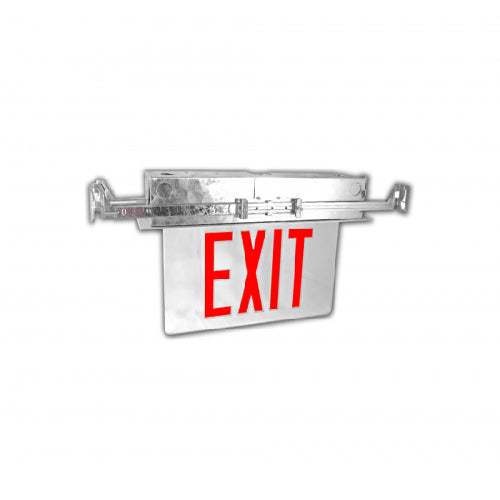

Advantage Environmental Lighting NYX10 New York Approved Recessed Aluminum LED Edgelit Exit

Advantage Environmental Lighting NYX10 New York Approved Recessed Aluminum LED Edgelit Exit

ILLUMINATION

• Ultra-bright, energy efficient, long-life Red LED.
• UV-stabilized, ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
• Double face utilizes factory instalLED silver or white mylar background panel.
• NY compliant 8” Exit letters.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V Long-life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Compatible with drywall or drop ceiling mount installations. Bar hangers included.

HOUSING

• Premium-grade, extruded aluminum housing.
• Extruded Aluminum trim assembly is easily detachable from below, providing accessibility for service or maintenance, also available in black or white powder-coated finishes.
• Self-adhesive Chevron appliques and guide template provided for directional indication.

OPTIONS

• SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations. (0°C – 50°C)
