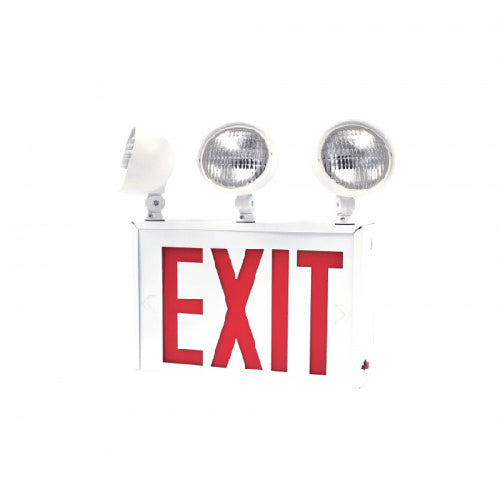

Advantage Environmental Lighting NYXEM6 New York Approved LED Exit & Incandescent Emergency Combo

Advantage Environmental Lighting NYXEM6 New York Approved LED Exit & Incandescent Emergency Combo

ILLUMINATION

• Two fully-adjustable 12 watt, glare-free lamp heads with field installable 3rd emergency lighting head included.
• K/Os provided on sides of unit to relocate lamp heads.
• High-performance smooth metal reflector and glass lens for optimal light distribution.
• Ultra-bright, energy efficient, long-life Red LED.
• NY compliant 8” exit letters.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable Sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board/lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Mounting hardware provided for back surface wall mount.
• Top and side K/Os provided for conduit feed applications.
• HOUSING
• Durable, powder-coated 20-gauge steel construction in white or black finish.
• Injection-molded, engineering-grade, high-impact, thermoplastic heads in white or black finish.
• Field removable steel knockout Chevron directional indicators on exit face.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for two years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations. (20°C – 50°C)
