Description

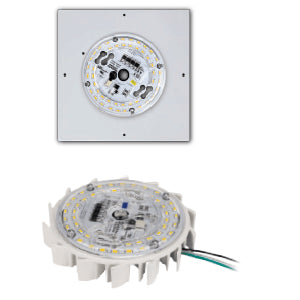

Advantage Environmental Lighting P213, P514 or P523 Circular LED Retrofit Kits/Arrays
Features
- UL 1598 Classified Retrofit Kit
- AC Driver-On-Board Technology
- Data Per NVLAP Accredited Laboratory
- TRIAC Dimmable to 5% (forward & reverse phase)
- Energy Star CSD
- 5 Year Warranty
Specifications
- Input voltage: 120VAC; 50/60Hz
- 13W, 14W, & 23W Models
- Available in 3000K or 4000K
- Constant current design
- High power factor > 0.98
- Estimated 50,000 hrs L70

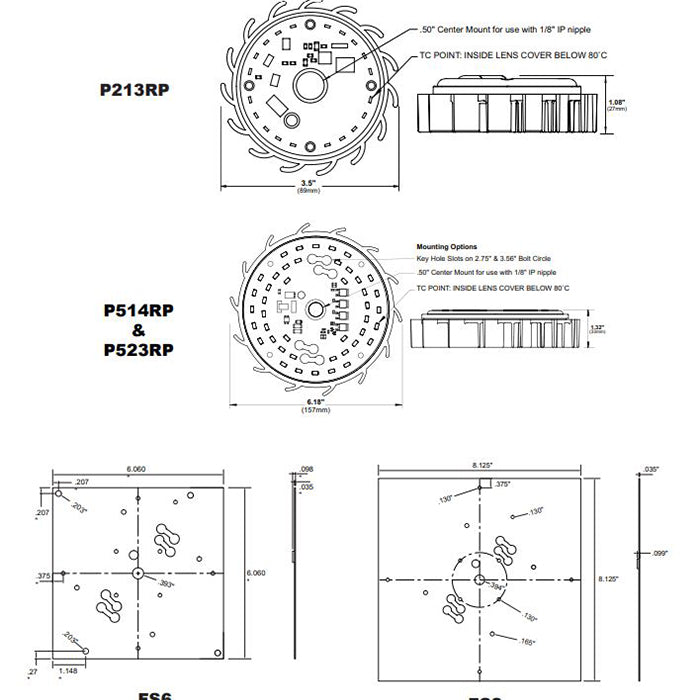

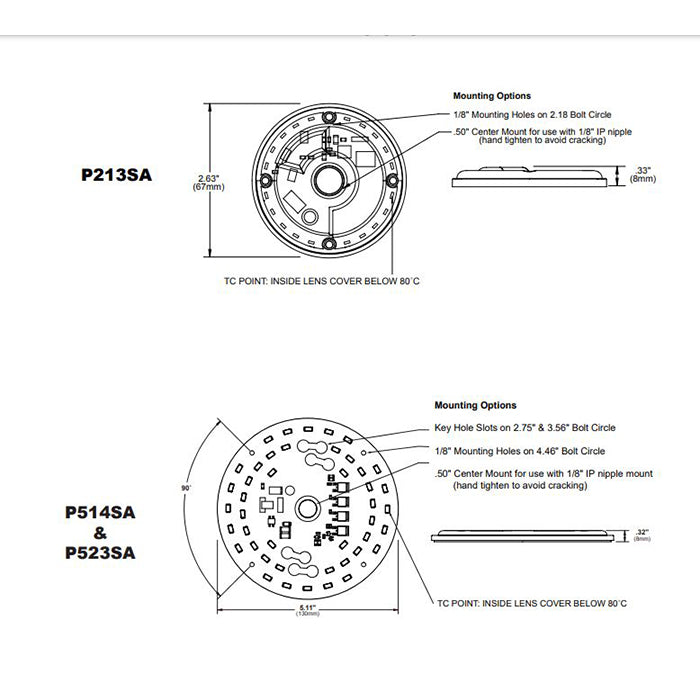

- Max lens temp. (Tc): 80°C (see diagram for Tc location)
- Optical grade polycarbonate lens
- On board line surge protection
- Standard mounting options for easy install w/ optional hardware
- Integrated powdercoated aluminum heat sink w/ ground wire
- Optional MOV ground surge protection
- 12" 18 AWG leads
- Retrofit Kits UL 1598 Classified
- Arrays UL file: E464765 certified under UL standard 8750
- FCC compliance Class B
