Advantage Environmental Lighting PA High Quality Puff Wrap Luminaire Applications

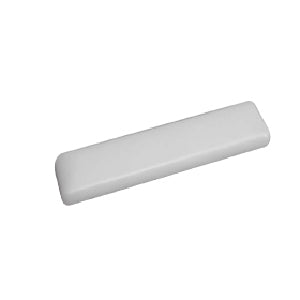

The PA Series is a 12” Fluorescent Puff Wrap. It is a low-profile, narrow, and decorative 2-lamp wrap that was designed for surface mounting applications.
APPLICATIONS
The PA Series of Fluorescent Puff Wraps were designed to be high quality, energy efficient fluorescent fixtures for use in residential or commercial applications, kitchens, dens, living rooms, bathrooms, office, and recreation rooms
CONSTRUCTION
The fixture is constructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling. Ballast Cover snaps into housing to cover ballast and wires. Housing accepts lift-and-shift lenses and frames, as well as frames that fit flush to the ceiling.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. Lift-and-shift lens. The puff lens design provides excellent lamp obscuration. Manufactured from high impact, durable DR/Acrylic White Polymer Blend.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB. New, low profile ballast cover prevents center shadows.
MOUNTING
Unit is designed for surface mounting.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
