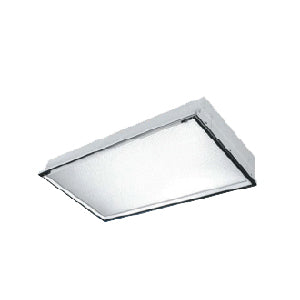

Advantage Environmental Lighting RHB High Performance Recessed Fluorescent High Bay Luminaire
The RHB Series is a High Performance Fluorescent Recessed High Bay Luminaire The RHB utilizes state-of-the-art fluorescent technology to deliver the highest possible efficiency in the lighting industry. Multiple lensing options are available including diffusers and polycarbonate lenses. The RHB Series integrates seamlessly with today’s modern building management systems. With virtually unlimited applications, The RHB Series allows architects and designers the freedom to experiment with their designs without exceeding ever decreasing energy budgets.
APPLICATIONS
The RHB Series of Recessed High Bays were designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. For T8 fixtures utilizing a motion sensor, a Program Start ballast is required (see Options). Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty..
