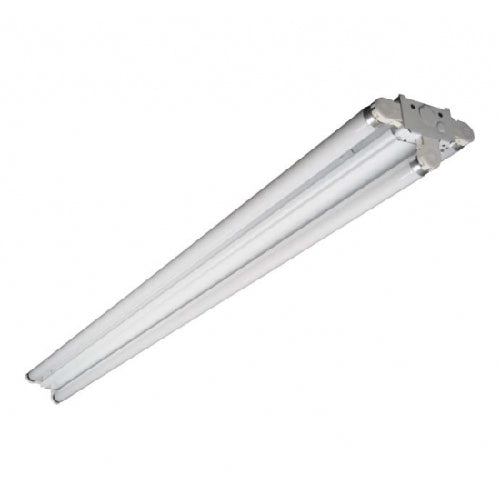

Advantage Environmental Lighting SMKD Side Mount Knockout Strip Luminaire

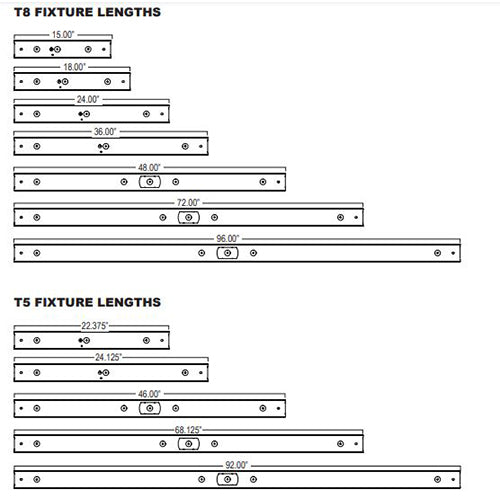

The SMKD Series is a Sidemount Knockdown Fluorescent Strip available in 1’ thru 8’ body lengths. It was designed for surface or suspended mounting applications.
APPLICATIONS
The SMKD Series of Narrow Fluorescent Strips were designed to be high quaility, energy effiecient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is contructed of a heavy gauge cold rolled steel body.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. Multiple lamp configurations.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
| SMKDL117LED: 2' - 1 lamp Side Mount Knockdown Strip Wired for LED Tubes | SMKDL217LED: 2' - 2 lamps Side Mount Knockdown Strip Wired for LED Tubes | SMKDL132LED: 4' - 1 lamp Side Mount Knockdown Strip Wired for LED Tubes | SMKDL232LED: 4' - 2 lamp Side Mount Knockdown Strip Wired for LED Tubes |
