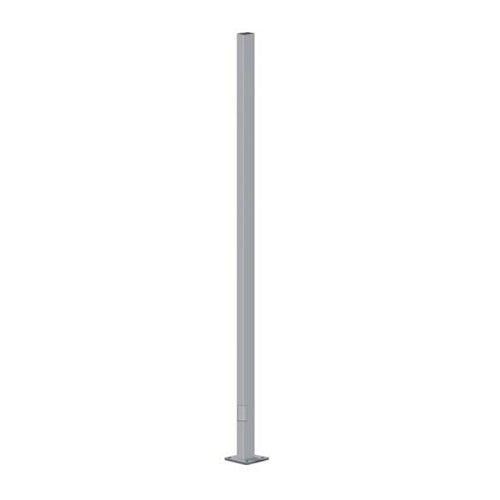

Advantage Environmental Lighting SSSQ Straight Steel Square Pole - 6" Pole Size, 35" Height, 7 Gauge Construction
CONSTRUCTION:

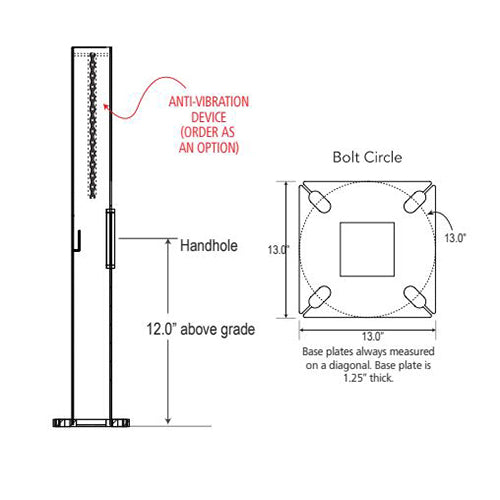

Our SSSQ Pole is manufactured here in the U.S. from a single piece of formed steel. Featuring high strength, domestic hot rolled carbon steel. Our poles also come standard with a minimum yield strength of 50,000 PSI (which conforms to ASTM A500 grade C requirements). The easy-access hand hole is located 12" above the base. A high-quality, heavy-gauge ground lug is included standard.
ANCHOR BASE:
Our anchor base is made from ASTM A36 grade hot rolled carbon steel plate and comes standard with a minimum yield strength of 36,000 PSI. An aluminum marine-grade base plate cover is provided which encloses the base plate and anchor bolts. Anchor bolts are available to order as a separate line item, and are available as pre-shipped with a rigid template.
MOUNTING/DRILL PATTERN:
A variety of mounting and drill patterns are offered to meet the needs of various applications. Inquire with your N2M representative for custom drill patterns.
FINISH:
A highly durable, long-lasting polyester powder coat finish is standard and can be applied in a variety of finish options. Standard colors include black, bronze, white, green, silver, grey (custom colors are available). Galvanized and painted galvanized poles are also available.
WARRANTY:
Standard: 2-Year warranty for structural and 5-Years for finish. Galvanized (extended warranty): 10-Year structural warranty combined with 5-Years for the finish. Our warranty will be voided if the pole is modified or installed improperly.*
