Description

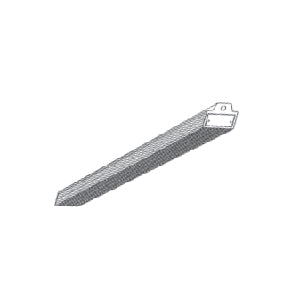

Advantage Environmental Lighting SW High Quality Single Lamp Fluorescent Narrow Wrap Luminaire

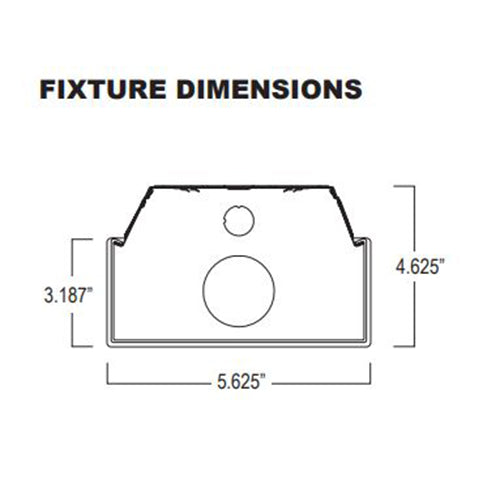

The SW Series is a 7” Fluorescent Wrap available in 1’ thru 8’ body lengths. It is a lowprofile, narrow 2 lamp wrap that was designed for surface mounting applications.
APPLICATIONS
The SW Series of Fluorescent Wraps were designed to be high quaility, energy effiecient fluorescent fixtures for use in commercial applications, industrial and garage applications, as well as kitchens, offices and storage rooms.
CONSTRUCTION
The fixture is contructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. Lift-and-shift lens. Advanced microprism clear acrylic lens design provides excellent lamp obscuration. Linear sides provide excellent light distribution and put more light in task areas. Manufactured from durable DR/Acrylic polymer blend.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Unit maybe surface, stem or aircraft cable mounted individually or in continuous rows
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
