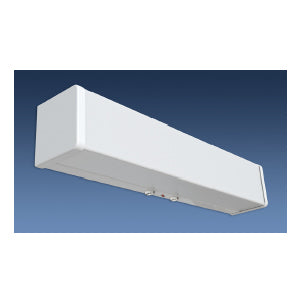

Advantage Environmental Lighting SWV13 Fluorescent Stairwell Luminaire with Sensor
The SWV13 Series is a Fluorescent Stairwell with Sensor fixture available in 1 or 2 lamp configurations. It is available with multiple lens and finish options, utilizing the occupancy sensor to sense motion within a space. It will automatically turns on lights even when the sensor has no direct line of sight to occupants. After the area becomes vacant and the time delay has passed, the sensors automatically turn the lights off. Ultrasonic detection operates by transmitting sound waves throughout an area and measuring the speed at which they return. Movement increases the return frequency, which triggers occupancy.
APPLICATIONS
The SWV13 Series of Fluorescent Stairwell with Sensor fixtures were designed to be high quality, energy efficient fluorescent fixtures for use in wall or ceiling corridors, stairwells and bathrooms.
CONSTRUCTION

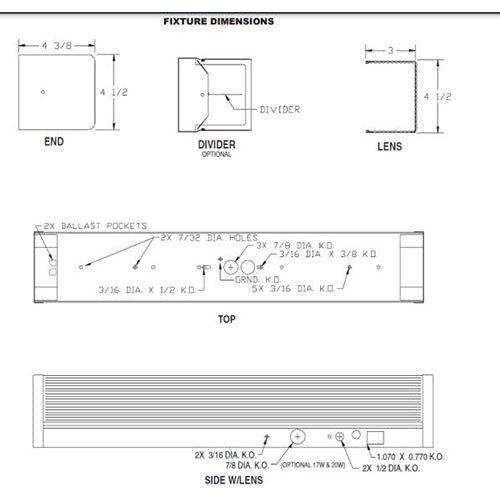

This fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. Optional 20 gauge body and one-piece end. Baffles and dividers are available for up, down, and/or front light. Ends with tapped holes to accommodate tamper-proof or regular screws. Wiring knockouts are provided on back of housing. End cap held in place with acorn nut.
OPTICAL SYSTEM
White pre-painted polyester polymer finish with a high reflectivity. The clear ribbed lens is fully captured by the end plate.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD.. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Units are designed for surface mounting on either a wall or ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
