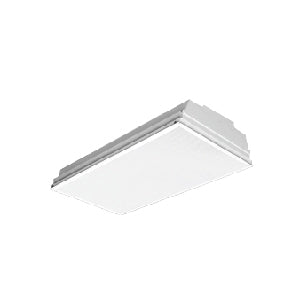

Advantage Environmental Lighting TRB High Quality Lay-In Recessed Troffer
The TRB Series is a Lay-In Fluorescent Troffer available in 1x4, 2x2, and 2x4 body sizes. It was designed for standard T-Grid applications. Multiple lensing options are available including diffusers or parabolic cubes. Architects find these fixtures especially functional for schools, offices, government facilities, public offices, and all other commercial types of applications on the market today. This fixture’s multiuse capability inspires its use in any area where energy efficiency is a must.
APPLICATIONS
The TRB Series of Lay-In Fluorescent Troffers were designed to be high quaility, energy efficient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is contructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty..
FEATURES AND BENEFITS
- Housing embossed for maximum rigidity. Rounded side flanges for safe handling
- Four corner tie points for safety wire supports
- Door frame hinges on end from either side of housing
