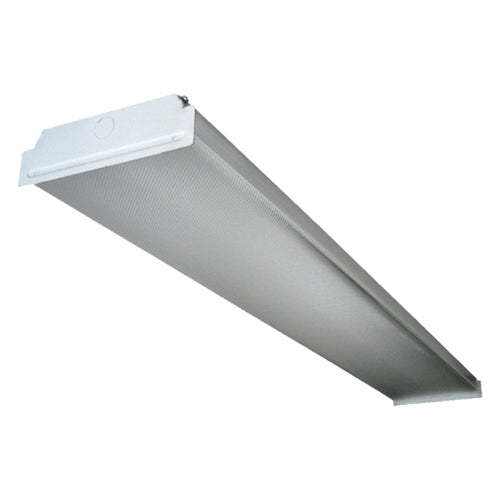

Advantage Environmental Lighting WD Angled Fluorescent Wrap Luminaire

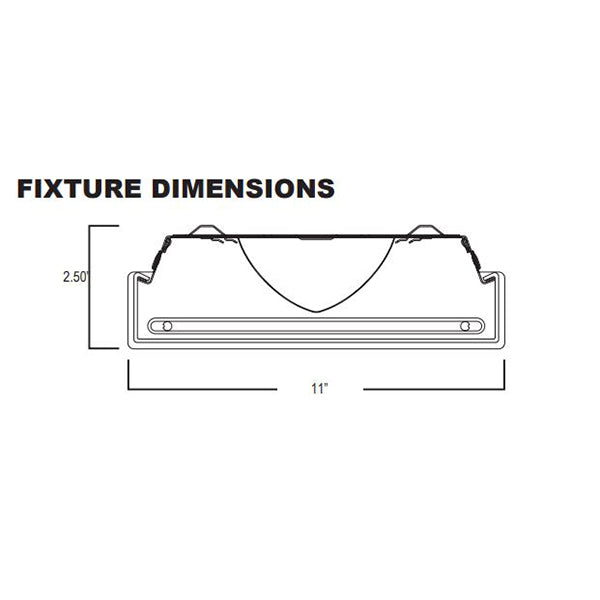

The WD Series is an 11" fluorescent wrap available in 2, 4, and 8 foot lengths. The WD series eliminates the need for repainting when replacing existing surface mounted fixtures.
APPLICATIONS
The WD Series of Fluorescent Wraps are designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, industrial and garage applications, as well as kitchens, offices and storage rooms.
CONSTRUCTION
The fixture is constructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 82% reflectivity. Lift-and-shift lens. Advanced microprism clear acrylic lens design provides excellent lamp obscuration.
ELECTRICAL SYSTEM
120-277V electronic program start ballasts. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Unit may be surface, stem or aircraft cable mounted individually or in continuous rows
LISTINGS
UL and cUL Listed. Indoor use only.
WARRANTY
1-Year Limited Warranty.
