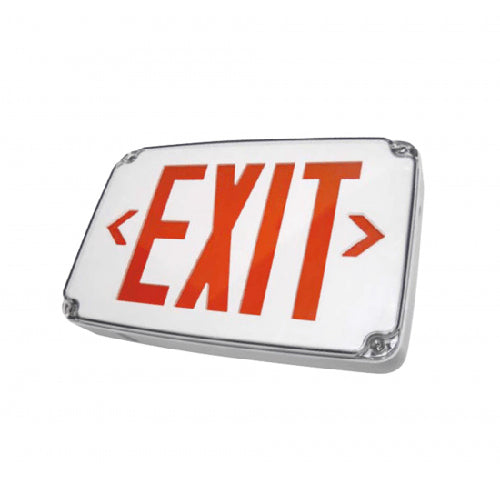

Advantage Environmental Lighting X15WLU Compact Wet Location LED Exit Sign

Advantage Environmental Lighting X15WLU Compact Wet Location LED Exit Sign

ILLUMINATION

• Ultra bright, energy efficient, long life Red or Green LED.

ELECTRICAL

• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• 4.8V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Polycarbonate mounting canopy included for top or end mount.
• Universal K/O pattern on back plate for wall mount.

HOUSING

• 5VA ,etihw ni etanobracylop dezilibats-VU ,tnadrater ema lf black or gray fi nish.
• High-impact resistant, UV-stabilized polycarbonate clear lens.
• Corrosion-resistant enclosure with engineering grade silicone gasket.
• K/O’s provided for conduit feed applications.
• EZ snap-out chevron directional indicators.

OPTIONS

• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
• 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
• TP: Tamper-proof hardware helps prevent unauthorized access to the unit.
• Custom: Signs available with requested “special” wording.

WARRANTY / LISTING

• Five year warranty on all electronics and housing. Battery pro rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for wet locations (-20°C – 50°C).
• Certified to CEC under Title 20 Regulations
