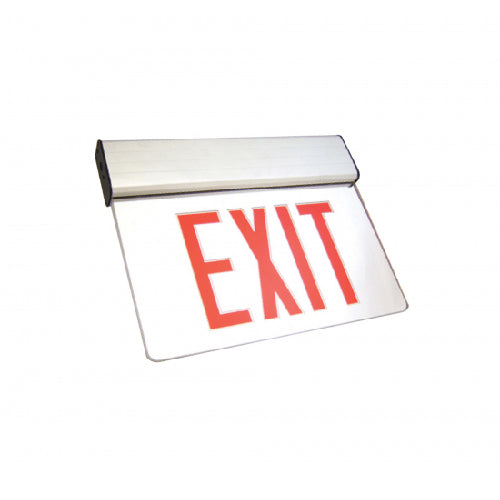

Advantage Environmental Lighting X1U Aluminum LED Edgelit Exit Sign

Advantage Environmental Lighting X1U Aluminum LED Edgelit Exit Sign

ILLUMINATION

• Ultra-bright, energy efficient, long-life Red or Green LED.
• UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
• Double face utilizes factory installed silver or white mylar background panel.

ELECTRICAL

• Dual 120/277 voltage standard.
• Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Aluminum mounting canopy included for top, end or back mount.

HOUSING

• Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
• Self-adhesive Chevron appliques and guide template provided for directional indication.

OPTIONS

• 2C-120V/2C-277V: Voltage-specific dual circuit option on the AC-only unit enables it to be connected to two different supplies at the same time.
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
• USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
• SPV: UL Listed for 208/220/240 Volt, 50/60Hz.
• Custom: Signs available with requested ‘special’ wording.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations. (0°C – 50°C)
• Certified to CEC under Title 20 Regulations
