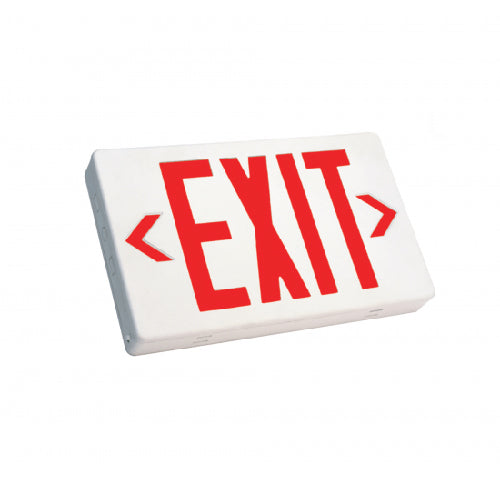

Advantage Environmental Lighting X5U-RC Remote Capable LED Exit Sign
ILLUMINATION
Ultra-bright, energy efficient, long-life Red or Green LED.
ELECTRICAL
Dual 120/277 voltage.
Offers 11W of remote capacity.
Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from deep discharge.
6V maintenance-free, rechargeable Sealed lead acid battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board/remote lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
EZ-snap mounting canopy included for top or end mount.
Universal K/O pattern on back plate for wall mount.
HOUSING
Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
EZ snap-out Chevron directional indicator.
OPTIONS
SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
HTR: Optional internal heater for cold temperature applications.
WARRANTY/LISTING
Five year warranty on all electronics and housing. Battery pro-rated for two years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
UL listed for damp locations. (20°C – 50°C / 68°F – 122°F)
