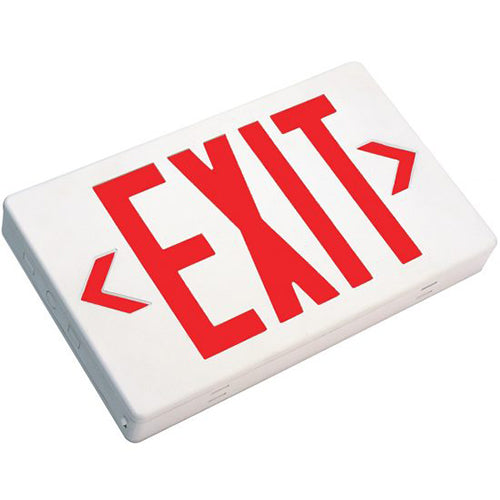

Advantage Environmental Lighting X5UBAA - BAA Compliant LED Exit Sign
ILLUMINATION
Ultra bright, energy efficient, long life Red or Green LEDs.
ELECTRICAL
Dual 120/277 voltage.
Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
EZ-snap mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
EZ snap-out Chevron directional indicators.
Compact, low-profile design
OPTIONS
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
Custom: Signs available with requested ‘special’ wording.
cUL: Units tested to meet requirements of CAN/CSA-c22.2 No. 141-02 standard for unit equipment.
WARRANTY / LISTING
Five year warranty on all electronics and housing. Battery prorated for five years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
