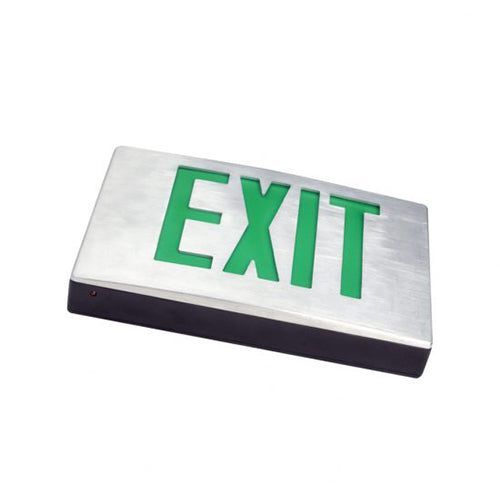

Advantage Environmental Lighting X6U Die-Cast Aluminum LED Exit Sign
ILLUMINATION
Ultra-bright, energy efficient, long-life Red or Green LED.
ELECTRICAL
Dual 120/277 voltage.
Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long life maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours
MOUNTING
Aluminum mounting canopy included for top or end mount.
Universal K/O pattern on back plate for wall mount.
HOUSING
Premium-grade, aluminum housing (also available in black or white powder-coated finishes).
Field selectable knockout Chevron directional indicators.
Unique design allows double face conversion in the field.
Quick-snap face plate closure.
OPTIONS
TP: Tamper-proof hardware helps prevent unauthorized access to the unit.
SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
2C: Dual-circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
USA: Substantial transformation assembly in the U.S. complies with “AssembLED in the USA” under the Buy American Act.
WARRANTY/LISTING
Five year warranty on all electronics and housing. Battery pro-rated for five years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
