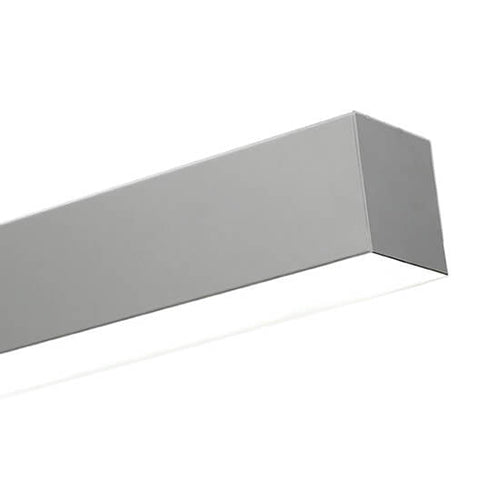

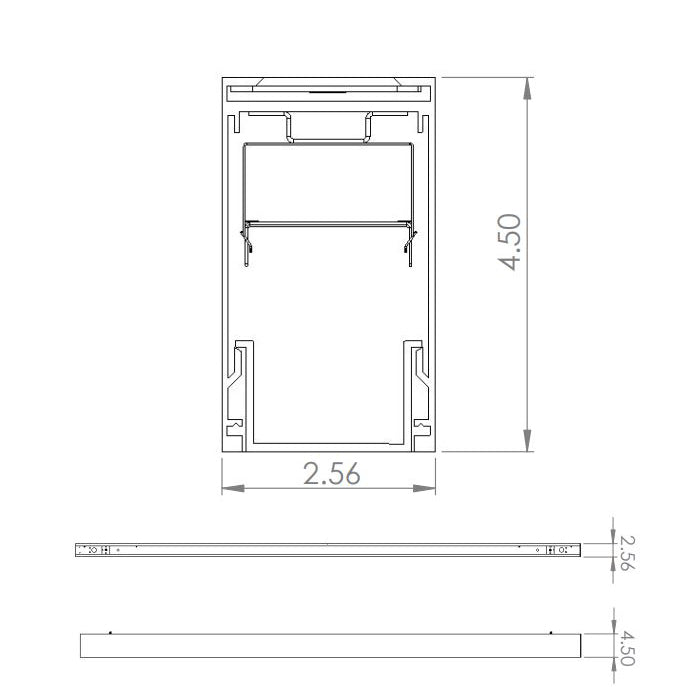

Advantage Environmental Lighting XDL24WMWL 2.5" x 4.5" Linear Wall Mount Wet Location
The XDL24WMWL is an LED linear wet location wall mount fixture, design with quality craftsmanship. Engineered for quick and easy tool-less installation. The XDL series provides clean lines, smooth continuous runs, and tight lens fitment. Available in continuous runs and custom angles and lengths.
Construction
Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 2' minimum. Custom gaskets seal the fixture to make a wet location rated linear fixture.
Tool-less Entry
LED Board tray clips in with quick release holders, and held on by tethers. Releasing the clips drops and holds the board tray, allowing quick, tool-less, and easy wiring of the fixture.
Mounting
2 piece wall innovative wall mounting system allows for quick and easy mounting.
LEDs
High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).
Optics
Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission.
Driver
0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.
Finish
Matte white finish standard. Custom finish options are available in various RAL colors.
Options
Various options are available. If hanging canopies are ordered, one power feed and one nonpower feed per fixture should be ordered.
Listings
UL and cUL listed. RoHS compliant. Suitable for wet locations.
Features
- Tool-Less Entry
- High efficacy and lifespan LEDs
- Innovative sliding mounting plate on top for canopies
- Wet Location Rated
Innovative Features
- Light trap prevents light leaks
- Board tray quick-release holders
- Board tray connected with tethers
Specification
| CRI | >82 |
| Standard dimmimg control | 0-10V |
| Life time rating | >100,000 hrs |
| Color Consistency | >3 SDCM |
| Lumen efficiency | 160 |
IES Files
Click for XDL24WMWL-40-HM-S-M-W-4.IES
Click for XDL24WMWL-40-HS-S-M-W-4.IES
