Advantage Environmental Lighting XDL4SM 4.0" X 4.5" Linear Surface Mount

Advantage Environmental Lighting XDL4SM 4.0" X 4.5" Linear Surface Mount

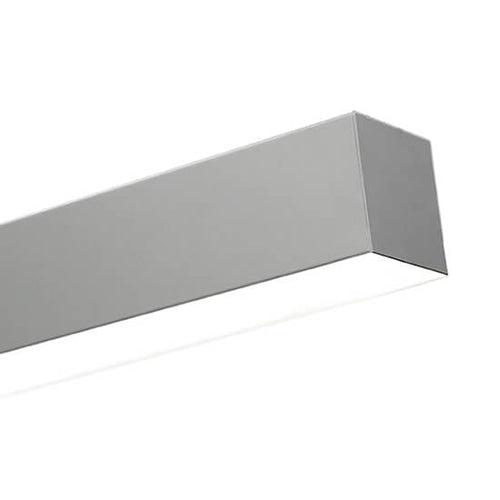

The XDL4SM is an LED linear surface mount fixture, design with quality craftsmanship. Engineered for quick and easy tool-less installation. The XDL series provides clean lines, smooth continuous runs, and tight lens fitment. Available in continuous runs and custom angles and lengths.

Construction

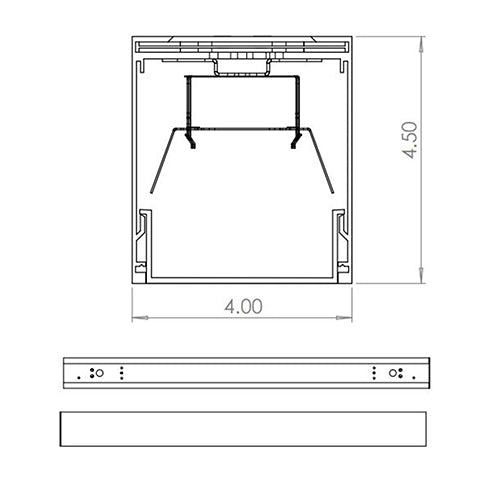

Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 2' minimum.

Tool-less Entry

LED Board tray clips in with quick release holders, and held on by tethers. Releasing the clips drops and holds the board tray, allowing quick, tool-less, and easy wiring of the fixture.

Mounting

Surface mounting conduit plate included with fixture. Fixture mounts to surface using included hardware. See installation instructions for details.

LEDs

High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).

Optics

Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission.

Driver

0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.

Finish

Matte white finish standard. Custom finish options are available in various RAL colors.

Options Various options are available. If hanging canopies are ordered, one power feed and one nonpower feed per fixture should be ordered. If additional or custom options are needed, consult factory.

Features

• Tool-Less Entry
• High efficacy and lifespan LEDs
• Innovative sliding mounting plate on top for canopies

Innovative Features

• Light trap prevents light leaks
• Board tray quick-release holders
• Board tray connected with tethers

Specification

Click for Spec Sheet
