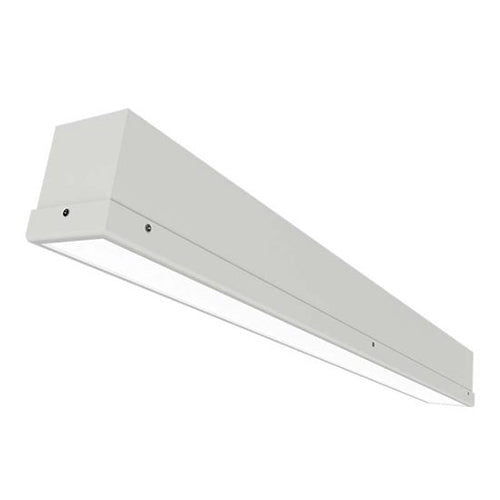

Advantage Environmental Lighting XDLVPWL 4.0" x 4.5" Linear Surface Mount Vandal Resistant Wet Location

Advantage Environmental Lighting XDLVPWL 4.0" x 4.5" Linear Surface Mount Vandal Resistant Wet Location

The XDLVPWL is a vandal resistant LED linear wet location surface mount fixture. Engineered for high abuse areas

Construction

Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Vandal-resistant doorframe prevents fixture abuse and seals the fixture. Available in custom RAL finishes.

Door Frame

Thick aluminum doorframe attaches to housing with tamper-proof Torx head with center pin fasteners. Doorframe seals to housing with gaskets to prevent water and dust from entering the fixture.

Mounting

Surface mounting installation. Special mounting bracket available for quick surface installation.

LEDs

High Output 80 CRI LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70). 90 CRI available.

Optics

Vandal-resistant frosted polycarbonate withstands high abuse, while providing optimal light transmission and LED diffusion.

Driver

0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI are available.

Finish

Matte white finish standard. Custom finish options are available in various RAL colors.

Listings

UL and cUL listed. RoHS compliant. Suitable for wet locations under covered areas. Manufactured in the USA, BAA compliant.

Features

• Vandal-resistant
• High efficacy and lifespan LEDs
• Surface mount
• Wet location
• Torx head security fasteners

Click for Spec Sheet
