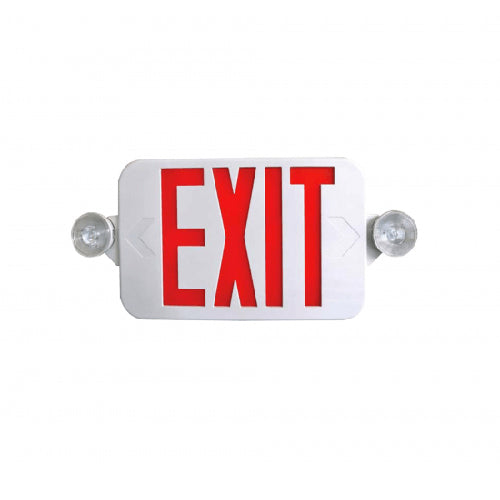

Advantage Environmental Lighting XEM2 Low Profile All LED Exit & Emergency Combo

Advantage Environmental Lighting XEM2 Low Profile All LED Exit & Emergency Combo

ILLUMINATION

• Adjustable long lasting, efficient ultra bright white LED lamp heads.
• One, 0.5W white LED per lamp head.
• Unique all inclusive lamp, reflector and lens assembly.
• Long-lasting, energy efficient Red or Green LED EXIT sign illumination.

ELECTRICAL

• Dual 120V/277 voltage standard. Optional dual 120V/230V available.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• 3.6V long life, maintenance-free, rechargeable Ni-Cd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Remote capacity option available.
• EZ-snap thermoplastic mounting canopy included – provides top or end mount.

MOUNTING

• Universal K/O pattern on back plate for wall mount.

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high-impact, thermoplastic in white or black finish.

OPTIONS

• SPV: UL Listed for special voltage option. WARRANTY / LISTING
• One year warranty on all electronics and housing.
• UL Listed for damp locations (0°C – 40°C).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• Certified to CEC under Title 20 Regulations.
