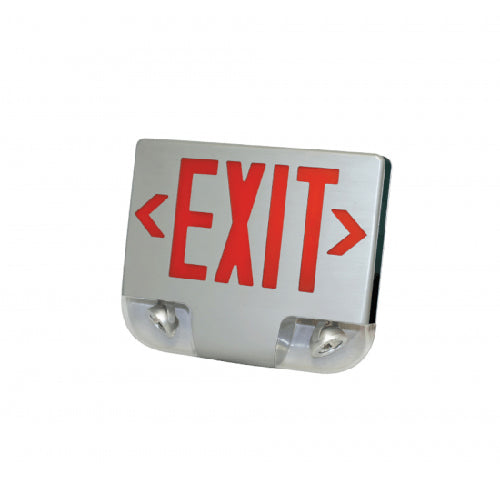

Advantage Environmental Lighting XEM3U Die-Cast Aluminum LED Exit & Emergency Combo

Advantage Environmental Lighting XEM3U Die-Cast Aluminum LED Exit & Emergency Combo

ILLUMINATION

• Ultra-bright, energy efficient, long-life Red or Green LED
• High performance premium grade, ultra-bright white LED lamps.
• 3W (1 LED x 3 watts) per head.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 8.4V long-life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Aluminum mounting canopy included for top or end mount.
• Universal K/O pattern on back plate for wall mount.

HOUSING

• First premium grade die-cast combo in the market. Unique new design provides spec-grade EXIT sign with LED lamp heads in one low-profile housing.
• Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
• Field selectable knockout Chevron directional indicators.
• Quick-snap face plate closure.
• Unique design allows double face conversion in the field.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations. (0°C – 50°C)

IES Files

Click for XEM3U.IES

Click for Spec Sheet
