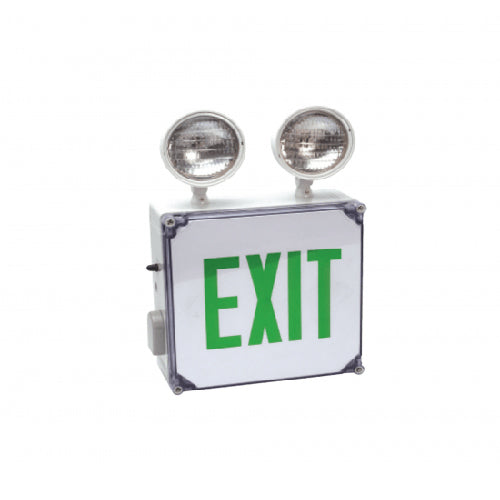

Advantage Environmental Lighting XEM7WL Wet Location LED Exit Sign & Incandescent Combo

Advantage Environmental Lighting XEM7WL Wet Location LED Exit Sign & Incandescent Combo

ILLUMINATION

• Two fully-adjustable 5.4 watt, glare-free lamp heads.
• High-performance reflector and tempered glass lens for optimal light distribution.
• Ultra-bright, energy efficient, long-life Red or Green LED exit sign illumination.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 6V long-life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board/lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Mounting hardware provided for back surface wall mount.

HOUSING

• 5VA flame retardant, UV-stabilized polycarbonate gray finish.
• High-impact resistant, UV-stabilized polycarbonate clear lens.
• Corrosion-resistant enclosure engineering grade silicone gasket.
• Top and side K/O’s provided for conduit feed applications.
• EZ snap-out Chevron directional indicators.

OPTIONS

• HTR: Optional internal heater for cold temperature applications.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
