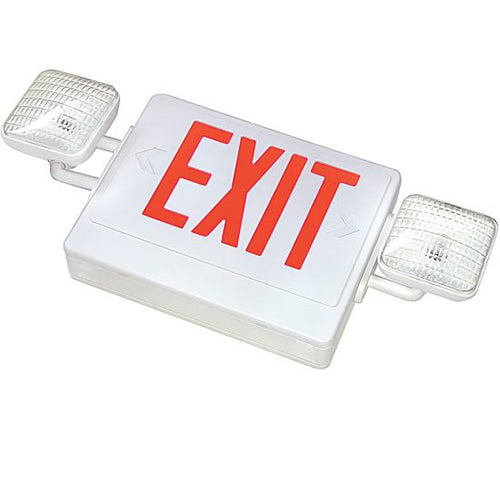

Smooth thermoplastic reflector and plastic lens for optimal light distribution.
Ultra bright, energy efficient, long life Red or Green LED EXIT sign illumination.
ELECTRICAL
Dual 120/277 voltage.
Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from deep discharge.
6V maintenance-free, rechargeable sealed lead acid battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board and lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
EZ-snap mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
EZ snap-out Chevron directional indicators.
OPTIONS
RC: Remote capacity of up to 11.0 watts
HTR: Optional internal heater for cold temperature (-9°C – 40°C) applications.
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
WARRANTY / LISTING
Five year warranty on all electronics and housing. Battery prorated for two years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
UL Listed for damp locations (20°C – 40°C).
Certified to CEC under Title 20 Regulations.
Meets CSA C22.2 No. 141-02 requirements for unit equipment.
