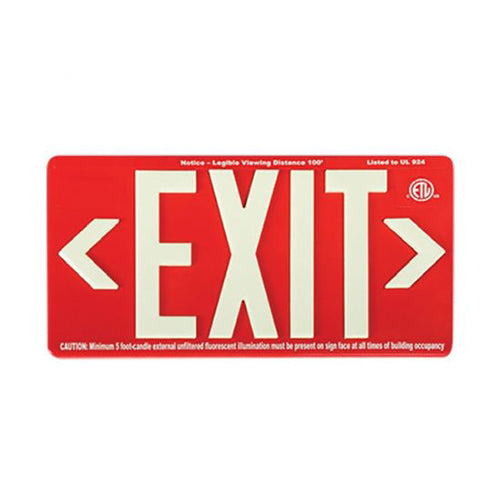

Advantage Environmental Lighting XPL1 - High Visibility Framed Photoluminescent Exit Sign
With visibility up to 100 feet, the XPL1 photoluminescent exit sign is a safe, reliable energy saving choice for commercial buildings, retailers, schools and healthcare facilities. Long-life photoluminescent technology eliminates energy costs and reduces maintenance expenses.
FEATURES AND BENEFITS
- Non-electric reliable illumination, consumes no energy
- No maintenance required
- Visible at 100 feet in total blackout or heavy smoke conditions
- Low-profile ABS plastic construction
- Field-selectable directional chevrons included for all configurations
- Non-toxic, non-radioactive materials
- Surface, ceiling or stem mounted
- Explosion-proof, suitable for floor proximity installation
- Designed for both high or low-level installation
- Low cost, easy installation, no wiring required
- 25 Year life expectancy
- 7/8” Stroke with 7” high visibility letters
- Minimum of 5 foot candles supplemented light required for face illumination
- Can be charged with LED lighting
- Housing available in black, green or red
- For interior use only
- Operating Temp: -29°C to 66°C (-20°F to 150°F)
- Buy American Act (BAA) Compliant.
WARRANTY
Any component that fails due to a manufacturing defect is guaranteed for one year. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. (Terms and conditions apply).
CONSTRUCTION

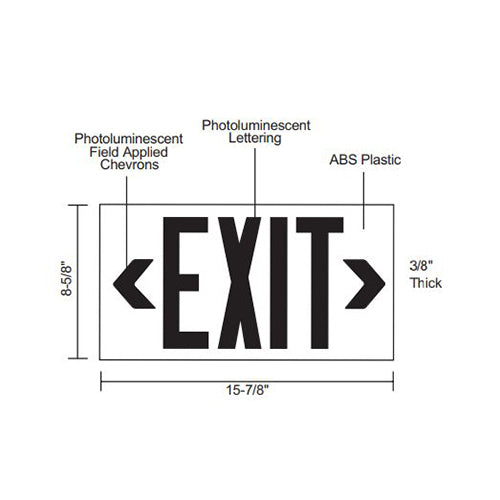

The XPL1 series of exits are constructed of durable ABS plastic with raised photoluminescent letters with field-applicable raised chevrons for easy direction selection.
ILLUMINATION
Fully illuminated 7" letters with 0.875" stroke is achieved utilizing engineered photoluminescent panel. High visibility green letters are visible at 100 feet.
INSTALLATION
Surface, flag or ceiling mounted (hardware included). Before installation it must be determined that there is a minimum of 54 lux of ambient fluorescent, metal halide or mercury vapor light on the face(s) of the sign at all times during occupancy. Ideal for explosion-proof areas or other applications where a direct power source is not available for high-level or low-level installations.
CONFORMANCE TO CODES AND STANDARDS
UL 924 Emergency Lighting and Power Equipment Listed through UL; meets NFPA Life Safety Code 101 and OSHA requirements: International Building and Fire Code 2009, 2012, 2015.
