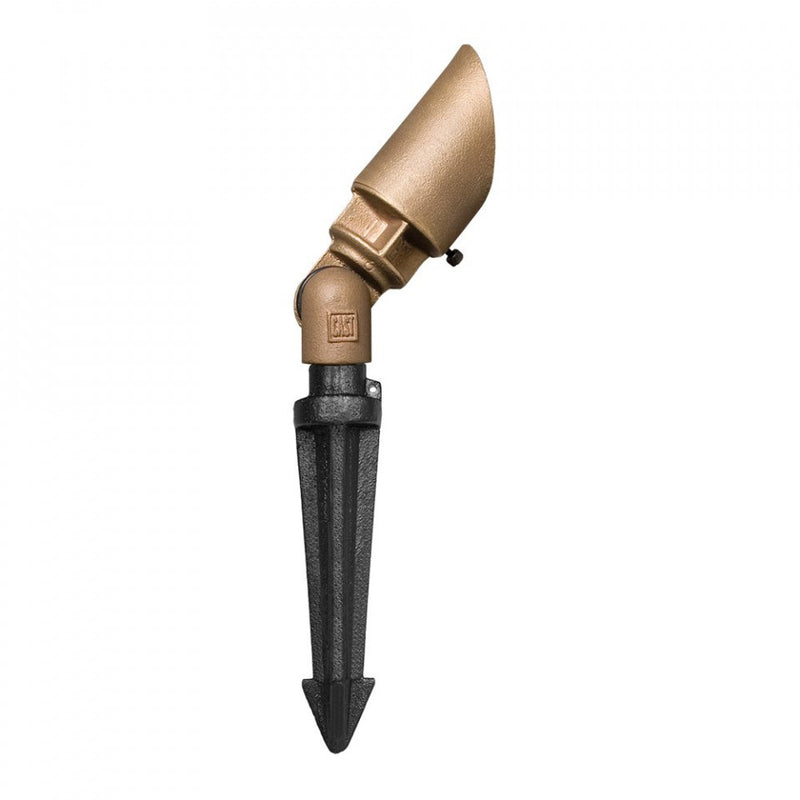

Cast Classic LED Bullet CBLED141 Solid Bronze By Cast Lighting

Cast Classic LED Bullet CBLED141 Solid Bronze By Cast Lighting

This low voltage LED landscape light combines the rugged solid construction with the industry's most advanced and feature-filled LED module. With just one finish (solid sand-cast bronze), two light levels, and 3 optical beam spreads, this one LED light replaces (and surpasses) the dozens of models from other manufacturers. It comes with 25' lead wire.

LED Lamp Specifications:

LED Light source: Life (L70) 60,500 hrs., Color Temp. 2720ºK, CRI 80

Input Voltage: 10 to 24 V AC orDC

Power Low Setting: Amps .52, 5.86W, Power Factor .93, Volt Amps 6.3

Power High Setting: Amps .82, 9.25W, Power Factor .94, Volt Amps 9.84

Lumen Output Low Setting: 269

Lumen Output High Setting: 328

Center Beam Candela Low setting: 781

Halogen Equivalent Watts: High 50W / Low 35W

Applications

Suitable for uplighting plant material, structures and architectural features. Design flexibility with a high/low switch and interchangeable optics. This fixture can not be used as a downlight.

Features

• Replaceable LED module (MR-16 size) thermally bonded to solid bronze fixture body for optimal heat dissipation.
• Replaceable optics for beam angles of 41 degrees (included), 21 degrees, and 12 degrees (both purchased separately).
• Optics are UL listed components; made of high-temperature polycarbonate
• Hi-Lo switch lets you choose from two Lumen levels
• LEDSense technology controls forward current to compensate for conditions of extreme ambient heat.
• Accepts input voltages between 10v and 24V AC or DC for maximum system design flexibility.
• Comes with 25' lead wire.
• Will not cause electromagnetic interference (EMI)
• Automatic recognition and compensation for varied magnetic and electronic transformer types.
• Dimmable with standard low-voltage phase dimmers.
• Warm white color temperature (2,720K) and high color rendering index (80 CRI) that closely matches incandescent lighting.
• L70 of 60,500 hrs.
• UL/CSA/RoHS Recognized, FCC Class A Conducted and Radiated Emmissions compliant.

Models

• CBLED141

Quick Info

• CAST Lighting magnetic toroidal core Transformers: Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
• CAST No-OX Tin-Coated Marine-Grade Wire Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
• Astronomical Digital & Mechanical Timers
• Photo Cells
• Seamless non-insulated crimp connections & Heat shrink for wirea

Product Files

Click for Classic LED Bullet: Specification Details

Click for Classic LED Bullet: Product Sheet

Click for Instructions

Click for Catalog

Click for Source Lighting Lamp Guide

Click for Landscape Warranty

Click for Classic LED Bullet: LM-79 Data - Highest Power

Click for Classic LED Bullet: LM-79 Data - Lowest Power
