Description

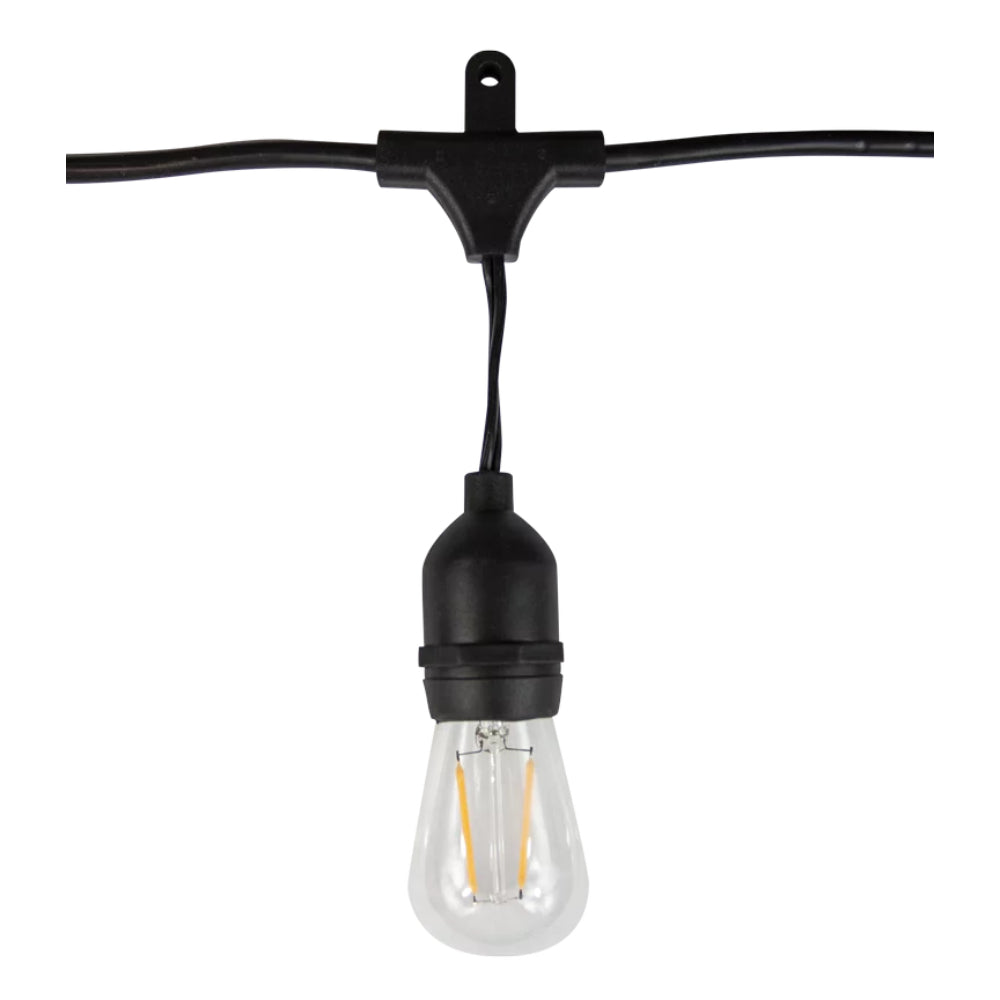

CopperMoon Brilliance LED Bistro String Light, 328' Length, 12VAC, 2-way Mounting Holes, No Lamps

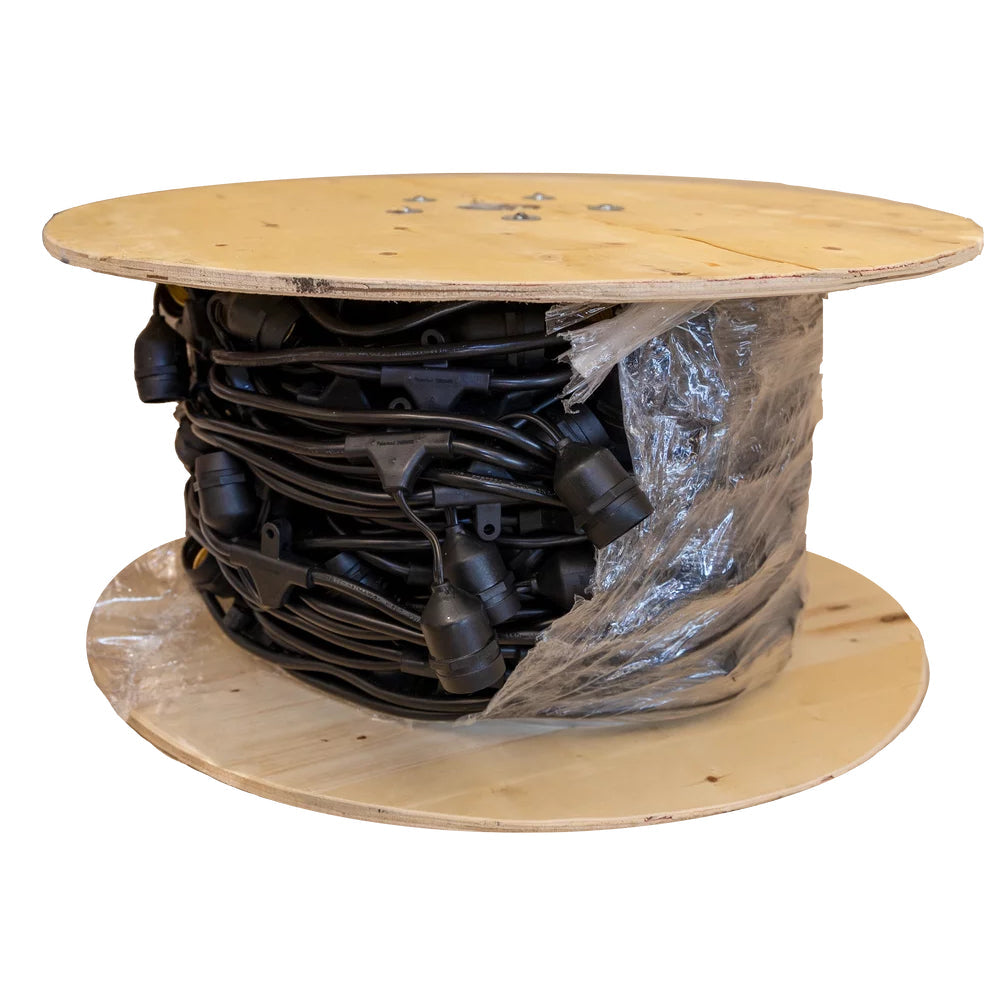

The Brilliance Low Voltage Bistro String Reel comes in a 328 ft. spool (100m) and can be cut to length per your requirements. Use this low voltage bistro string with the corresponding low voltage string connection accessories for custom length bistro lighting.
This string is for use with low voltage lamps only. Dimmable with Brilliance Dimmer and most magnetic transformers. Mounting cable and turnbuckles are not included. Connection accessories and lamps are sold separately.
NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft) horizontally from the nearest edge of the water, unless permitted by Article 680.
Features:
- Patented design (U.S. Patent D898986S)
- Uses 14 AGW cable and features a waterproof seal
- Two-way mounting holes at each lamp position eliminate the need for zip ties and create a more secure installation for the life of the string lights
Specifications:
| S14 LAMP REQUIREMENTS | 1W, 12VAC | 2W, 12VAC | 3.5W, 12VAC |
|---|---|---|---|
| Max. # of Lamps | 75 | 50 | 30 |
| Max. Wattage | 125.25 with VA | 117.5 with VA | 117.9 with VA |
| Max. String Length | 150 ft. end-to-end | 100 ft. end-to-end | 60 ft. end-to-end |
