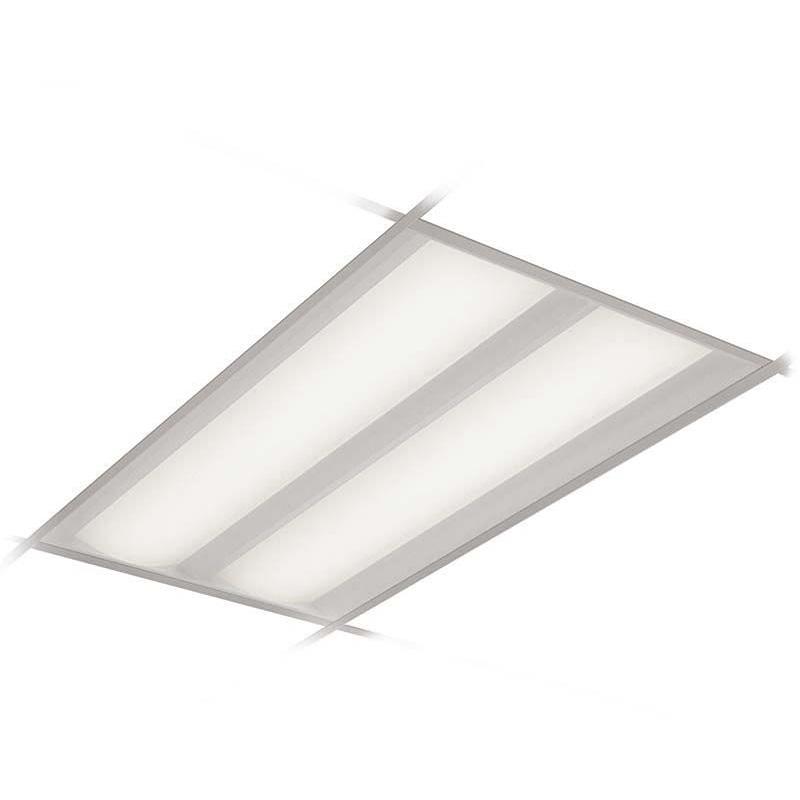

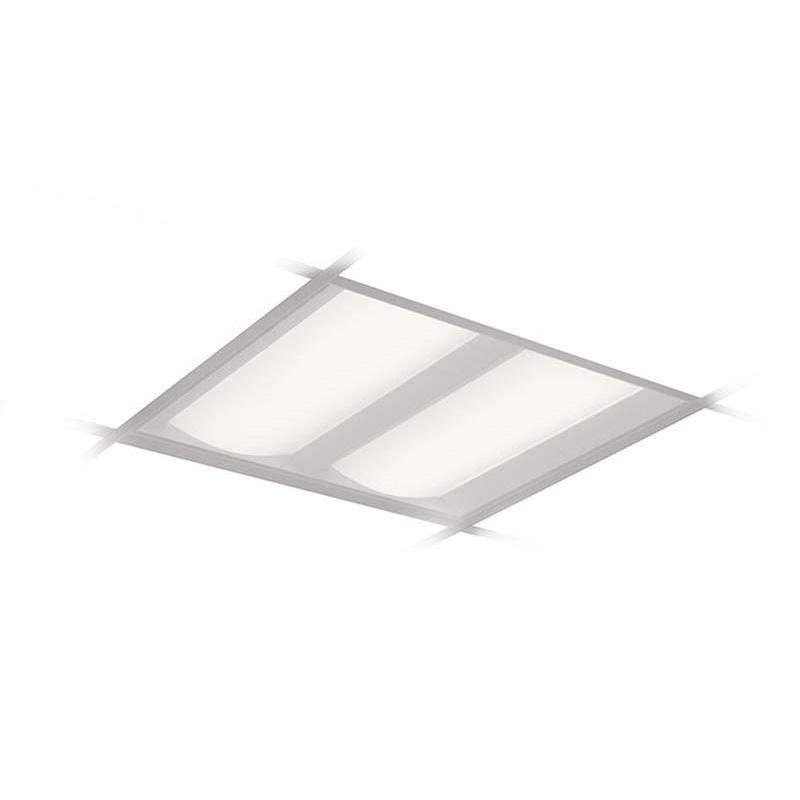

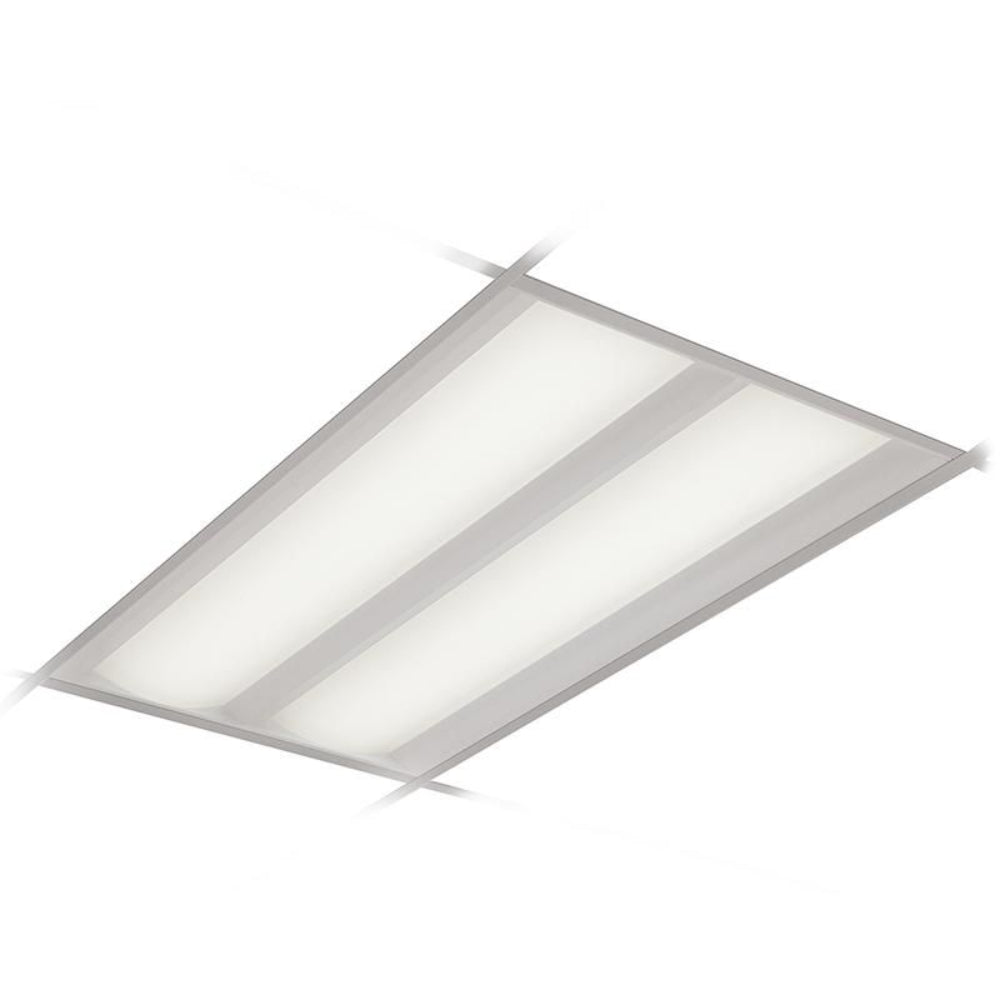

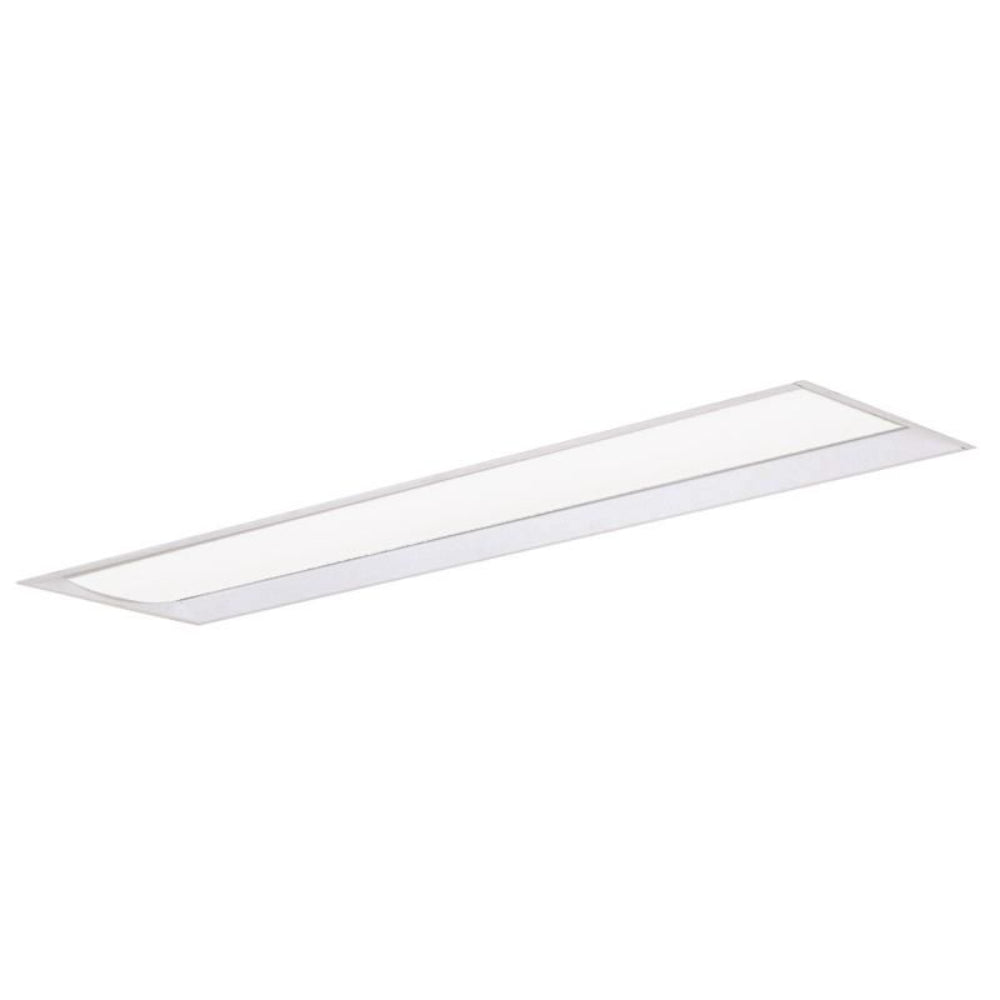

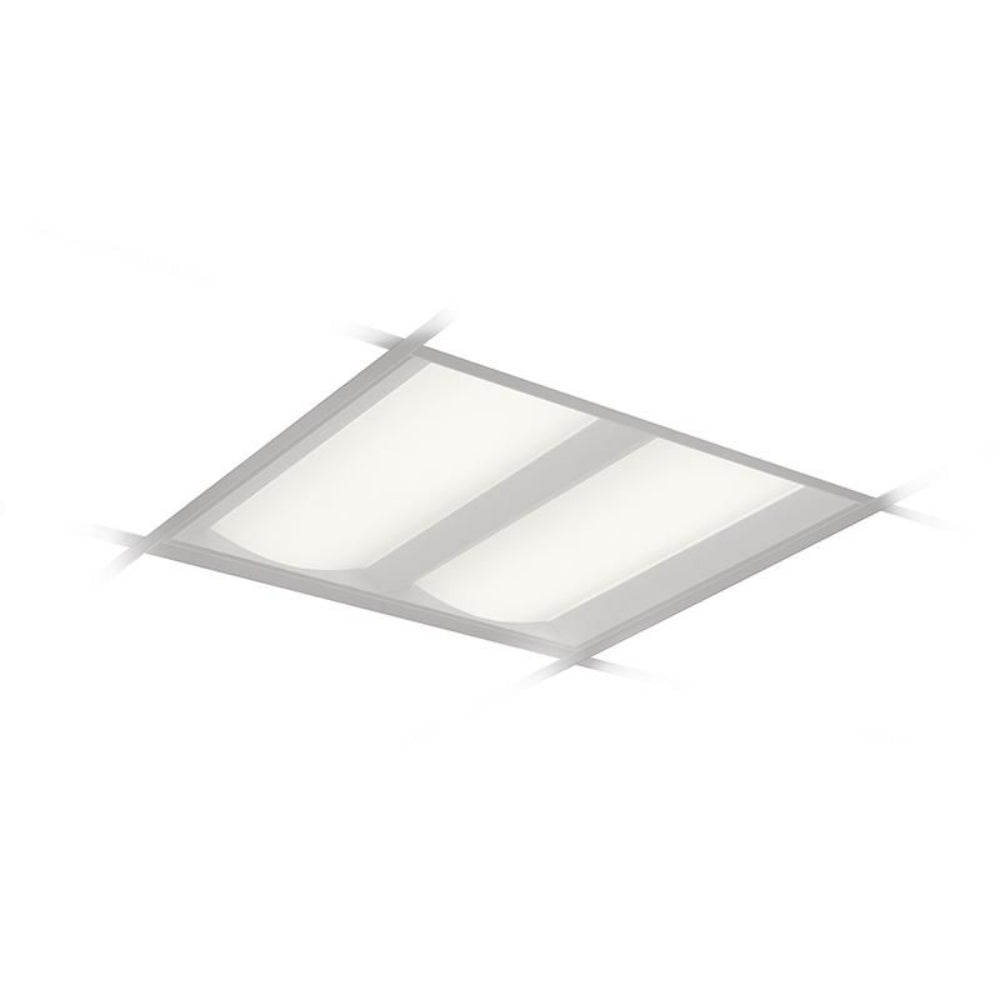

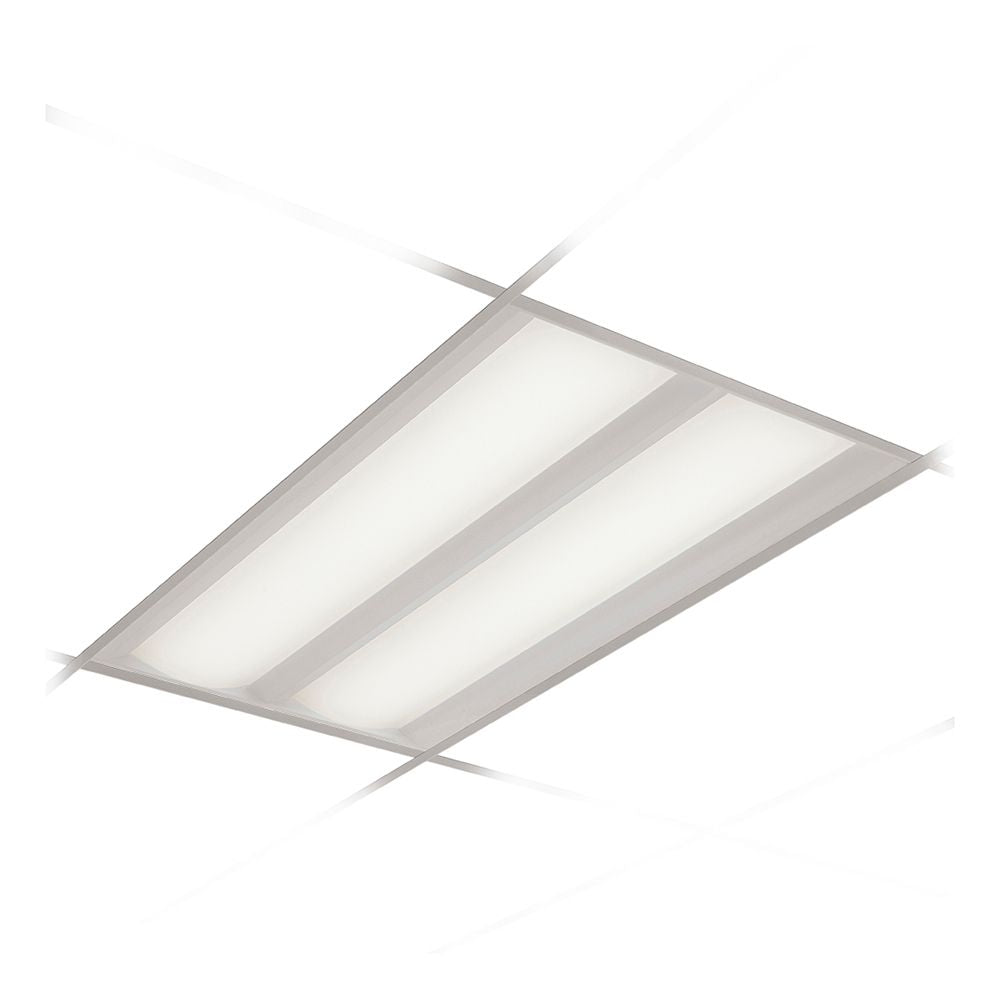

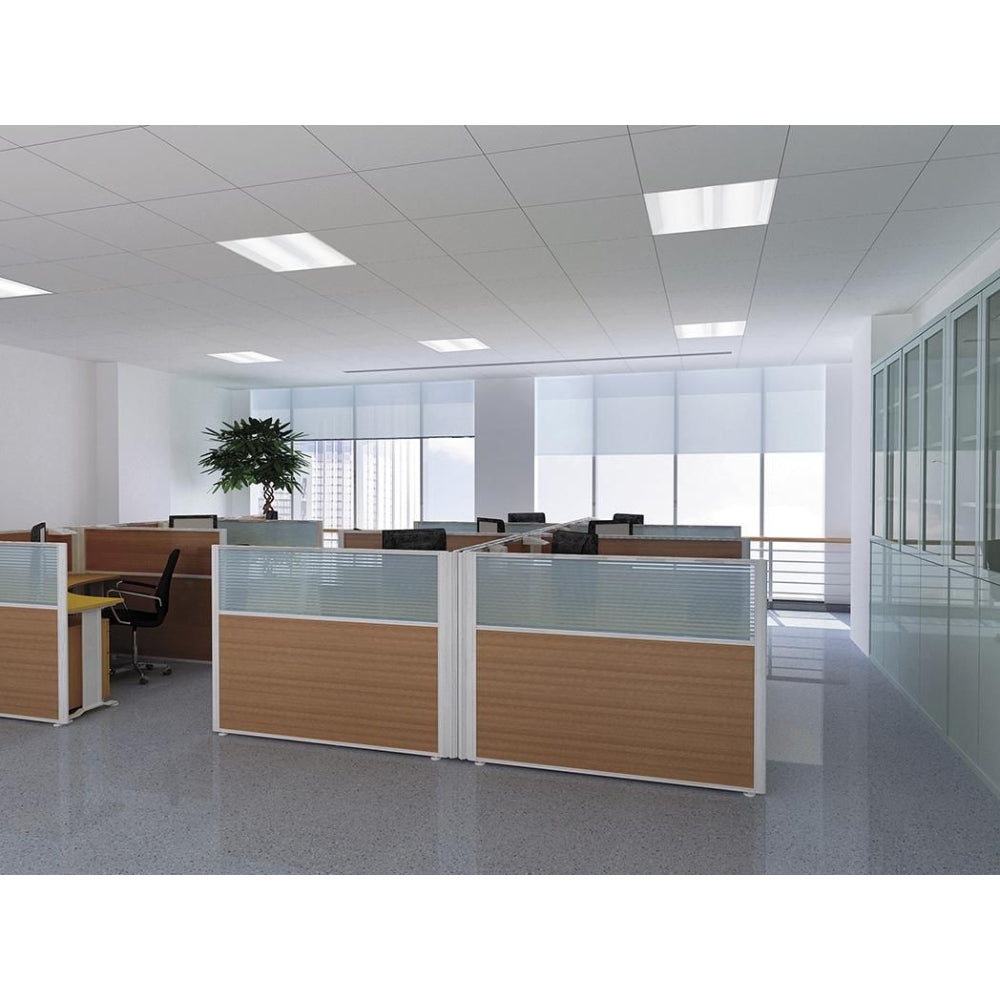

Day Brite Lighting DuaLED Recessed
Product Information
Product Name | SKU | Watts | Lumens | Kelvin |
---|---|---|---|---|
2x2, 2700 Nominal Delivered Lumens, 4000K, Diffuse - 96 lm/W | 2DLG27L840-2-D-UNV-DIM | 28 | 2700 | 4000 |
2x2, 3400 Nominal Delivered Lumens, 3500K, Diffuse - 94 lm/W | 2DLG34L835-2-D-UNV-DIM | 36 | 3400 | 3500 |
2x2, 3400 Nominal Delivered Lumens, 4000K, Diffuse - 94 lm/W | 2DLG34L840-2-D-UNV-DIM | 36 | 3400 | 4000 |
2x2, 3800 Nominal Delivered Lumens, 3500K, Diffuse - 97 lm/W | 2DLG38L835-2-D-UNV-DIM | 39 | 3800 | 3500 |
2x2, 3800 Nominal Delivered Lumens, 4000K, Diffuse - 97 lm/W | 2DLG38L840-2-D-UNV-DIM | 39 | 3800 | 4000 |
2x2, 4400 Nominal Delivered Lumens, 3500K, Diffuse - 94 lm/W | 2DLG44L835-2-D-UNV-DIM | 47 | 4400 | 3500 |
2x2, 4400 Nominal Delivered Lumens, 4000K, Diffuse - 94 lm/W | 2DLG44L840-2-D-UNV-DIM | 47 | 4400 | 4000 |
2x2, 2100 Nominal Delivered Lumens, 3500K, Diffuse - 95 lm/W | 2DLG21L835-2-D-UNV-DIM | 22 | 2100 | 3500 |
2x2, 2700 Nominal Delivered Lumens, 3500K, Diffuse - 96 lm/W | 2DLG27L835-2-D-UNV-DIM | 28 | 2700 | 3500 |
2x4, 4300 Nominal Delivered Lumens, 3500K, Diffuse - 105 lm/W | 2DLG43L835-4-D-UNV-DIM | 41 | 4300 | 3500 |
2x4, 4300 Nominal Delivered Lumens, 4000K, Diffuse - 105 lm/W | 2DLG43L840-4-D-UNV-DIM | 41 | 4300 | 4000 |
2x4, 4900 Nominal Delivered Lumens, 3500K, Diffuse - 102 lm/W | 2DLG49L835-4-D-UNV-DIM | 48 | 4900 | 3500 |
2x4, 4900 Nominal Delivered Lumens, 4000K, Diffuse - 102 lm/W | 2DLG49L840-4-D-UNV-DIM | 48 | 4900 | 4000 |
2x4, 5800 Nominal Delivered Lumens, 3500K, Diffuse - 100 lm/W | 2DLG58L835-4-D-UNV-DIM | 58 | 5800 | 3500 |
2x4, 5800 Nominal Delivered Lumens, 4000K, Diffuse - 100 lm/W | 2DLG58L840-4-D-UNV-DIM | 58 | 5800 | 4000 |
2x4, 7300 Nominal Delivered Lumens, 3500K, Diffuse - 99 lm/W | 2DLG73L835-4-D-UNV-DIM | 74 | 7300 | 3500 |
2x4, 7300 Nominal Delivered Lumens, 4000K, Diffuse - 99 lm/W | 2DLG73L840-4-D-UNV-DIM | 74 | 7300 | 4000 |
1x4, 2700 Nominal Delivered Lumens, 4000K, Diffuse - 95 lm/W | 1DLG27L840-4-D-UNV-DIM | 28.5 | 2700 | 4000 |
1x4, 3600 Nominal Delivered Lumens, 4000K, Diffuse - 95 lm/W | 1DLG36L840-4-D-UNV-DIM | 38 | 3600 | 4000 |
1x4, 4100 Nominal Delivered Lumens, 4000K, Diffuse - 93 lm/W | 1DLG41L840-4-D-UNV-DIM | 44 | 4100 | 4000 |
1x4, 4700 Nominal Delivered Lumens, 4000K, Diffuse - 90 lm/W | 1DLG47L840-4-D-UNV-DIM | 52 | 4700 | 4000 |
1x4, 2700 Nominal Delivered Lumens, 3500K, Diffuse - 95 lm/W | 1DLG27L835-4-D-UNV-DIM | 28.5 | 2700 | 3500 |
1x4, 3600 Nominal Delivered Lumens, 3500K, Diffuse - 95 lm/W | 1DLG36L835-4-D-UNV-DIM | 38 | 3600 | 3500 |
1x4, 4100 Nominal Delivered Lumens, 3500K, Diffuse - 93 lm/W | 1DLG41L835-4-D-UNV-DIM | 44 | 4100 | 3500 |
1x4, 4700 Nominal Delivered Lumens, 3500K, Diffuse - 90 lm/W | 1DLG47L835-4-D-UNV-DIM | 52 | 4700 | 3500 |
Product Family Details
DuaLED was thoughtfully developed as a sustainable luminaire with a modern appearance and uncomplicated design, also offering exceptional quality and performance, for an outstanding benefit to the customer. DuaLED is a highly efficient, architecturally styled recessed LED luminaire designed with a minimalistic strategy to achieve sustainable objectives. It combines an extremely low profile with clean aesthetics and is powered by highly efficient advanced LED sources, providing the utmost in comfortable efficient lighting. Driver and integral control options ensure optimization for every application. Designed for excellent visual comfort, DuaLED is perfect for a wide variety of general applications like offices, schools, retail, or healthcare.
Benefits
- Clean, modern design provides architectural styling compatible with virtually any area
- Less material and packaging required
- Reduced weight
Features
- Excellent color rendering with a CRI of 8
- -1V dimming to 1% for standard configurations
- High efficiency LEDs have a minimum of 7, hour rated life for standard configurations

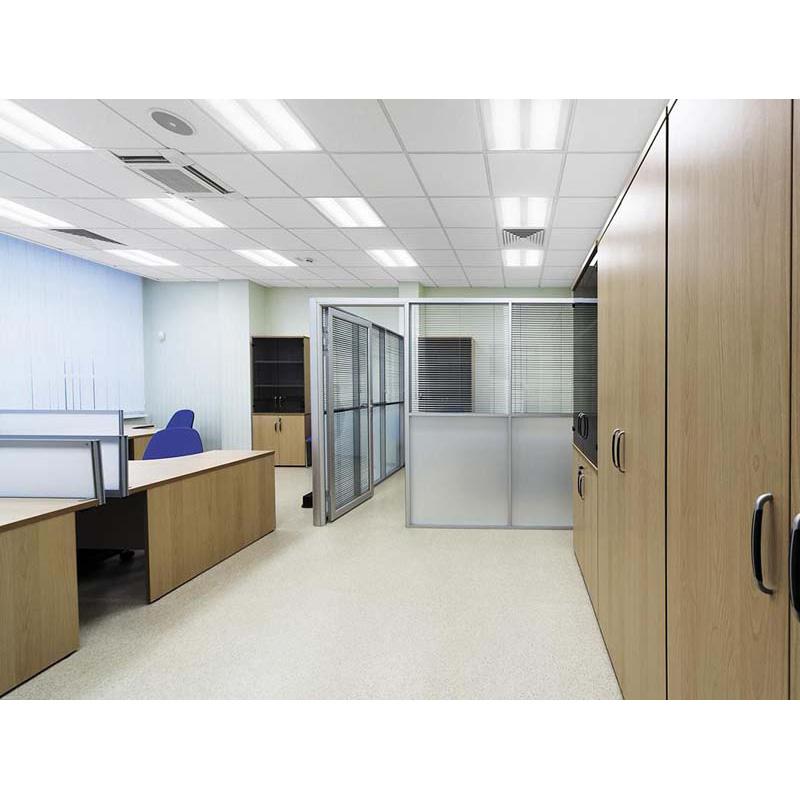

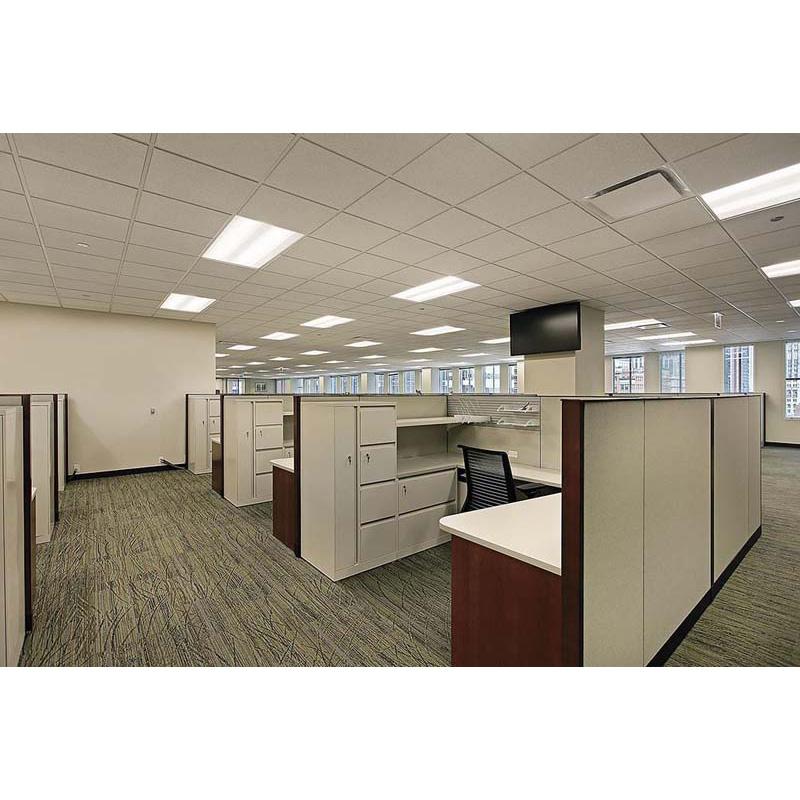

Applications
- Office
- Banks
- Hospitality
- Fashion
- Hospitals and Care Centers
- Education
Click for DuaLED Recessed LED 2x2 Spec Sheet
Click for DuaLED Recessed LED 2x4 Spec Sheet
Click for DuaLED Recessed LED 1x4 Spec Sheet
Click for PLt-17021BR SpaceWise DT Brochure
Click for DuaLED 2x2 Spacewise Installation Sheet
Click for DuaLED Recessed LED 2x4 Installation Sheet
Click for DuaLED Recessed LED 1x4 Installation Sheet
Click for DuaLED Recessed LED 2x4 w/ Spacewise Technology Installation Sheet
